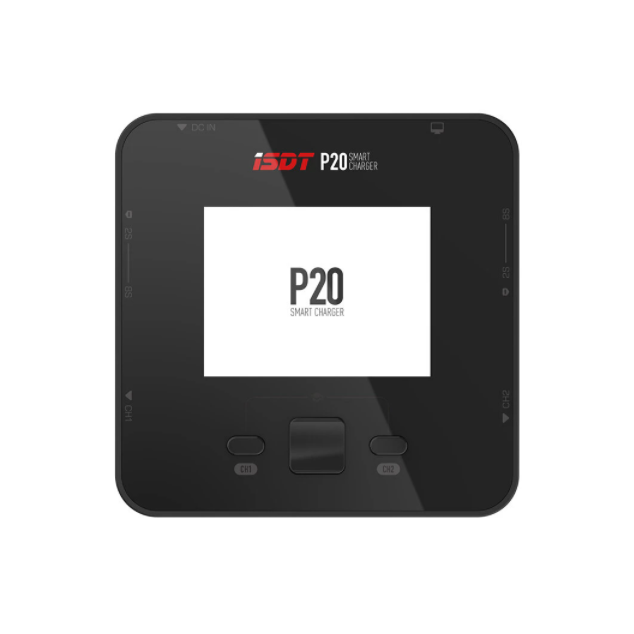

iSDT P20 500WX2 20Ax2 Dual Channel Charger (DC INPUT)

Are you an FPV enthusiast in Australia looking for a powerful LiPo charger? The iSDT P20 is a top - notch 500w dual - channel charger that can charge LiPo batteries up to 8S. It's a must - have for anyone into FPV! If you need less power, check out the P10 charger, or for more power, the P30 is your choice. Note that this is a DC charger only. To use it with an AC 240v wall socket, you'll need an AC to DC power supply or a compatible USB wall charger. Here are the key specs: Input voltage ranges from DC 10 to 34V, output from DC 1 to 34V. Max input current is 35A, and charging current is 0.2 - 20.0A per channel. Max charging power is 500W per channel. It supports various battery types like LiFe, LiIon, LiPo (1 - 8S), LiHv (1 - 7S), Pb (1 - 12S), and NiMH/Cd (1 - 16S). Parallel charging power is 800W/35A, and parallel discharge is 30W/3A. Works well at 0 - 40℃ and can be stored at - 20℃ - 60℃. It's compact, just 105x105x47mm, and weighs about 350g. The package includes 1X ISDT P20 Charger. Also, you can browse more LiPo batteries, LiPo chargers, cables, connectors, and other iSDT products.

Using the iSDT P20 charger is easy. First, make sure you've got the right input power source. Since it's a DC charger, connect it to a suitable DC power supply. If you want to use an AC wall socket, you'll need an AC to DC power supply or a compatible USB wall charger. Next, connect your battery to the charger according to the battery type and cell count. You can charge different types of batteries like LiPo, LiIon, etc., but always double - check the cell count settings. The charger has alarms for abnormal voltage and incorrect cell count settings, so if you hear an alarm, check your connections and settings. When charging, keep an eye on the charging current and power. The max charging current per channel is 20A, and max power is 500W per channel. For parallel charging, the power limit is 800W/35A. Don't exceed these limits to avoid damaging the charger or the battery. After use, store the charger in a dry place at a temperature between - 20℃ and 60℃. Clean it gently with a dry cloth if it gets dirty. And remember, this charger works best at temperatures between 0℃ and 40℃, so avoid using it in extreme heat or cold.
