Matek F405-WTE ICM42688-P With Integrated ELRS RX

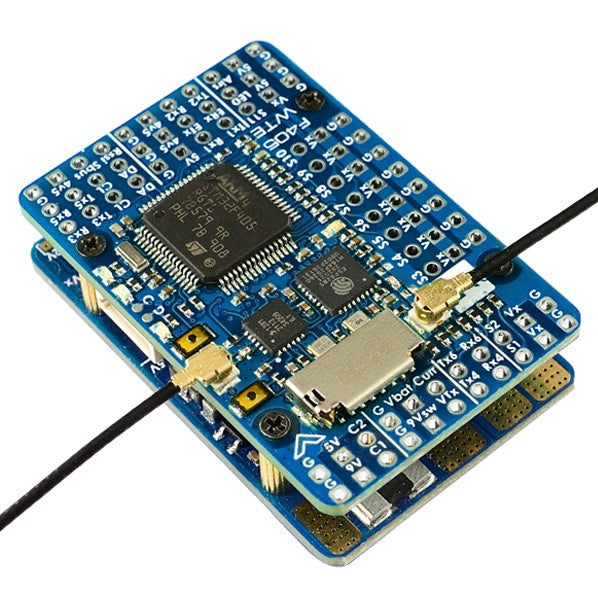

Are you in Australia looking to buy a top - notch flight controller? The Matek F405 - WTE is Matek's latest F4 Wing Flight Controller. With a built - in ELRS RX, it's a perfect addition to your wing build. Key features include an STM32F405RGT6 MCU running at 168MHz with 1MB Flash, an ICM42688 - P IMU, and a SPL06 - 001 barometer. It also has an AT7456E OSD and a MicroSD card slot for blackbox recording. ESP WiFi Telemetry and an ExpressLRS 2.4G receiver enhance its communication capabilities. With 6 UARTs, 12 PWM outputs, and more, it's highly functional. The firmware supports ArduPilot and INAV. The PDB has a wide input voltage range and comes with various power - related features. Multiple BEC outputs power different components. Physically, it's 44 x 29 x 12.7mm, weighs 22g with the USB/buzzer adapter, and is easy to mount. The package includes the controller, USB/beep extender, antennas, a capacitor, and unsoldered Dupont pins.

Using the Matek F405 - WTE Flight Controller is straightforward. First, mount it using the 25 x 25mm holes. Connect your ESC to the power pads and other components to the appropriate outputs. When powering the device, make sure the input voltage is within the 6.8 - 30V range. For stable BEC outputs, ensure the input voltage is at least 1V higher than the output voltage. When installing the firmware, follow the instructions for ArduPilot or INAV carefully. Keep in mind that the INAV MATEKF405TE_SD firmware is not available in INAV configurator 4.x. Maintenance is simple. Keep it clean and dry. If you are not using it for a long time, store it in a cool, dry place. Also, check the pins and connections regularly to ensure they are secure and not damaged.
