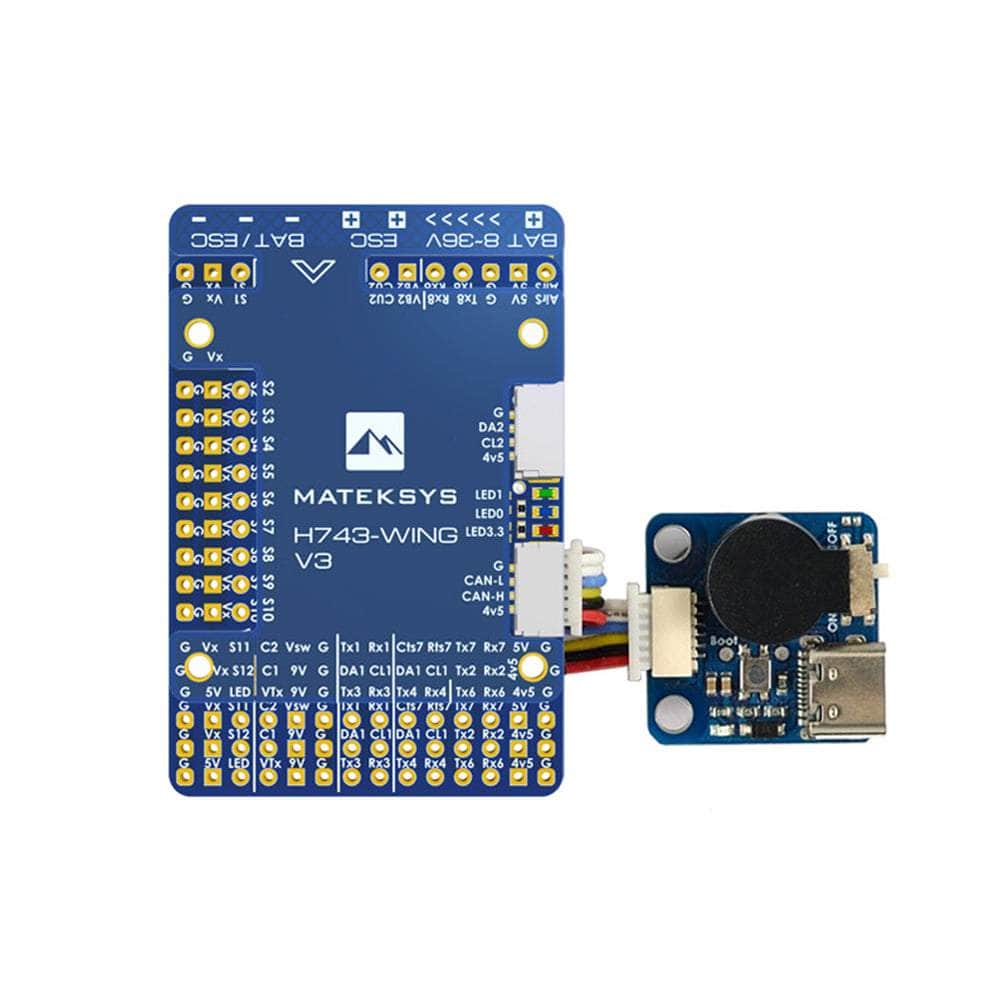

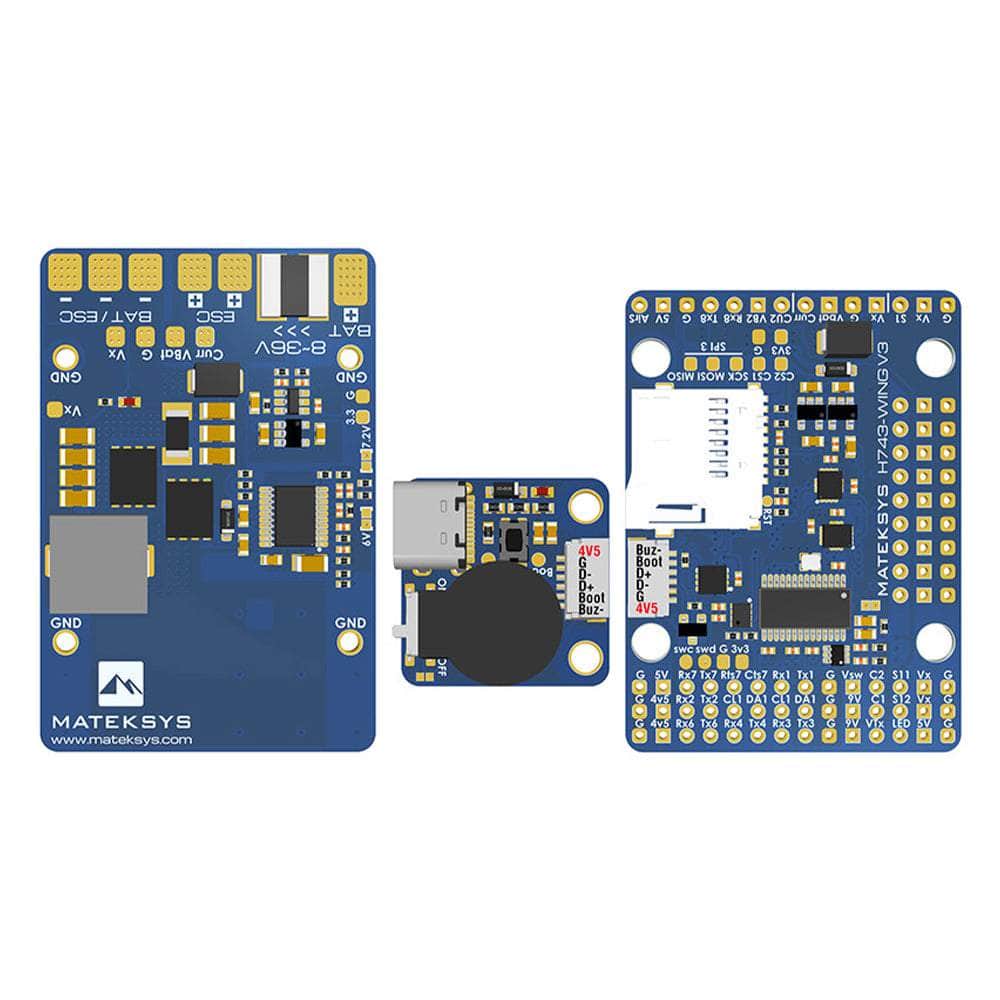

Matek H743-Wing V3 ICM42688-P/ICM42605 Flight Controller

Are you looking to buy a top - notch flight controller in Australia? The Matek H743 WING V3 Flight Controller is here with exciting new features and improvements over the original. It's powered by a 480MHz STM32H743VIT6 MCU and comes equipped with dual gyros (ICM42688 - P on SPI1 and ICM42605 on SPI4) and a DPS310 barometer on I2C2. This version has an updated gyro compared to V2. It supports a 3 - 8S LiPo input voltage, offers 8 sets of UARTs, and comes with OSD, ESC connections, and a current sensor. It also has 3.3V, 5V, 9V, and 12V BEC. The black box uses a Micro SD, and it's not stack - mounted. Measuring 54x36x13mm and weighing just 30g, this package includes 1x Matek H743 Wing V3 Flight Controller. Browse other wing flight controllers, Ardupilot flight controllers, or all Matek products.

Using the Matek H743 - Wing V3 Flight Controller is straightforward. First, make sure to connect your power source, which should be a 3 - 8S LiPo battery. Then, connect your electronic speed controllers (ESCs) and other relevant components according to the pinout. You can take advantage of the 8 sets of UARTs for various connections. When it comes to firmware, use the MATEKH743 firmware. As for the black box, insert a Micro SD card to record flight data. Important things to note: Don't exceed the specified input voltage as it can damage the controller. When handling the controller, be gentle due to its small size and delicate components. For maintenance, keep it clean from dust and debris. If you notice any signs of damage, like loose connections or a malfunctioning gyro, check the components carefully and replace them if necessary.
