Micro Motor Warehouse CL-0820-15-11T coreless motor for Latrax Alias

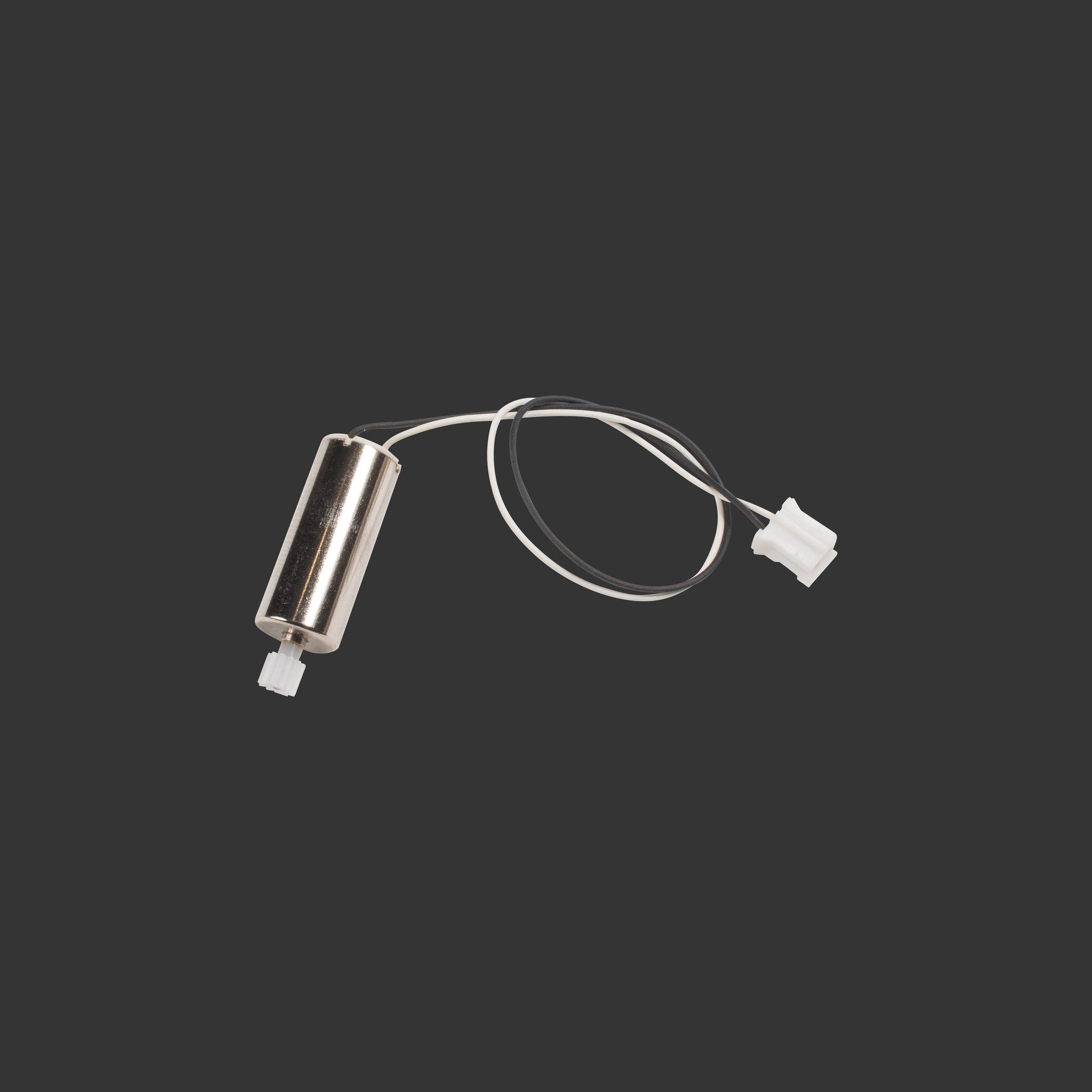

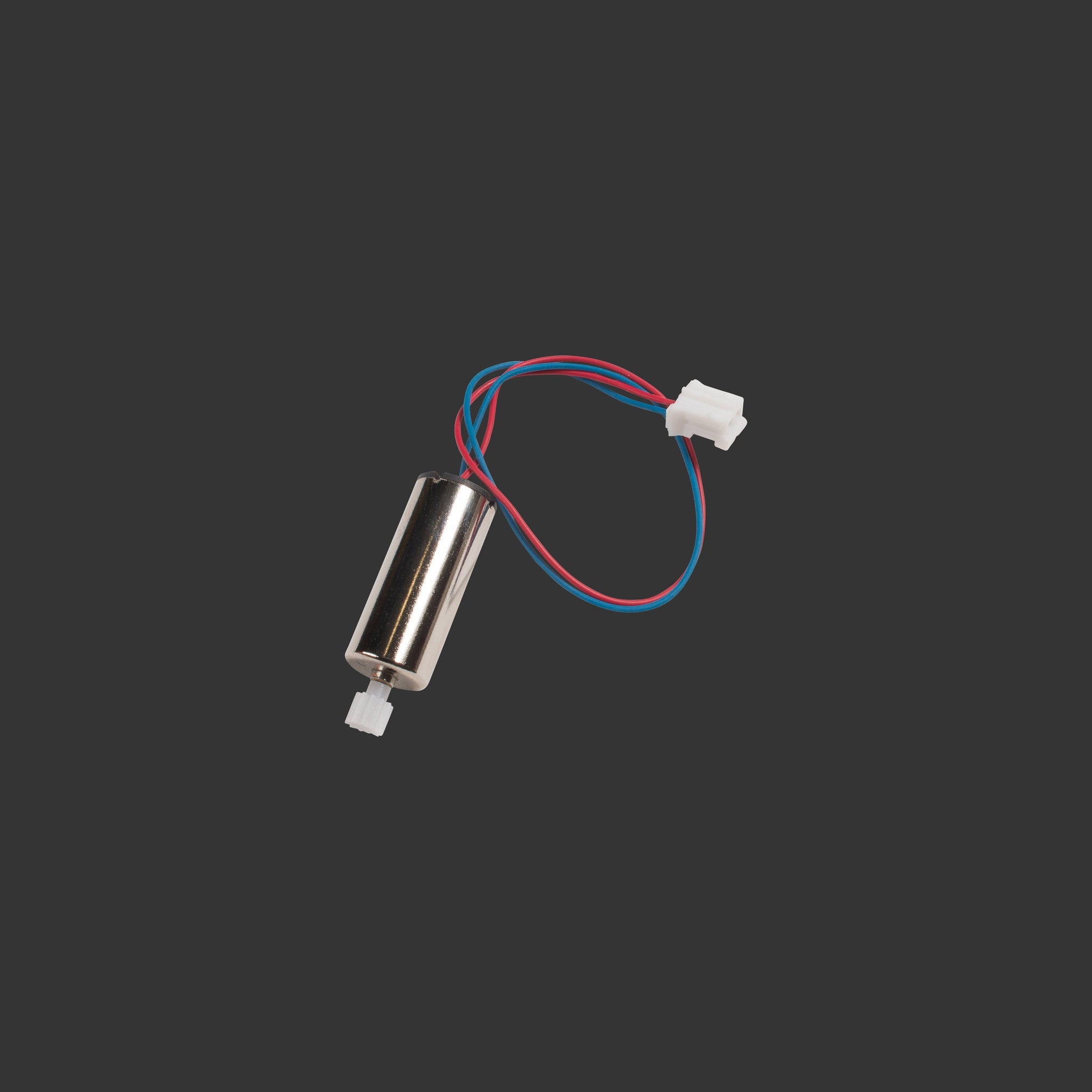

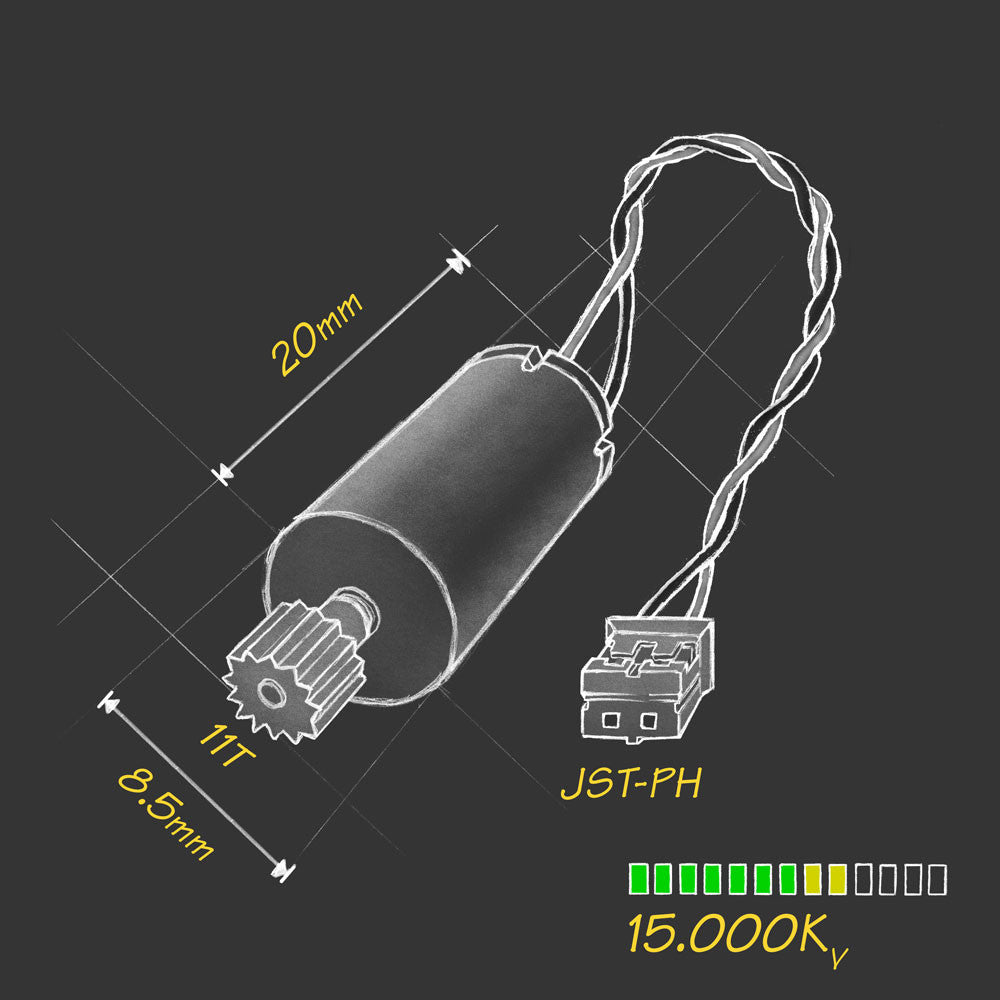

Package includes 4 motors (2 CW, 2 CCW). This is the geared 0802-15 version with 11T polymer pinions and pre-fitted JST-PH plugs, compatible with Latrax Alias. Installation instructions with pictures are available. For other quads like Helimax 230Si and Galaxy Visitor 3, you'll need to solder or fit your own plugs. Use only with 1S (3.7V) batteries. Performance data: speed 15,000K, operating voltage 1.5 - 3.7V, max thrust 40g (direct drive, Hubsan X4 propeller), 2.75A max load current at 3.7V (Hubsan X4 propeller), factory lifetime 5 - 6 hours. Dimensions: can diameter 8.5mm, can length 20mm, shaft diameter 1mm, shaft length 5mm, wire length 120mm, weight 4.9g. All packs have equal CW and CCW motors. Don't run them in reverse for best performance. Motor rotation and polarity are indicated by wire color: CW - red +, blue -; CCW - white +, black -. Check reviews and comparisons on rcgroups for 1s micro/mini brushed quadcopter specs and performance.

Using these motors is easy. First, make sure you're using a 1S (3.7V) battery as recommended. If you're using them with a Latrax Alias, the pre - fitted JST - PH plugs will work right away. You can follow the provided picture - based installation instructions. For other quads like Helimax 230Si and Galaxy Visitor 3, you'll need to solder or fit your own plugs. When it comes to rotation, remember that the motor rotation and correct polarity are shown by the wire color. For clockwise motors, red is positive and blue is negative. For counter - clockwise motors, white is positive and black is negative. To get the best performance and make the motors last longer, don't run them in reverse. Keep an eye on the operating voltage between 1.5 - 3.7V. Also, note that the factory lifetime rating is 5 - 6 hours, so don't expect them to last forever. When not in use, store them in a dry and cool place to maintain their condition.
