Radiomaster Nomad Dual 1-Watt Gemini Xrossband ExpressLRS Module

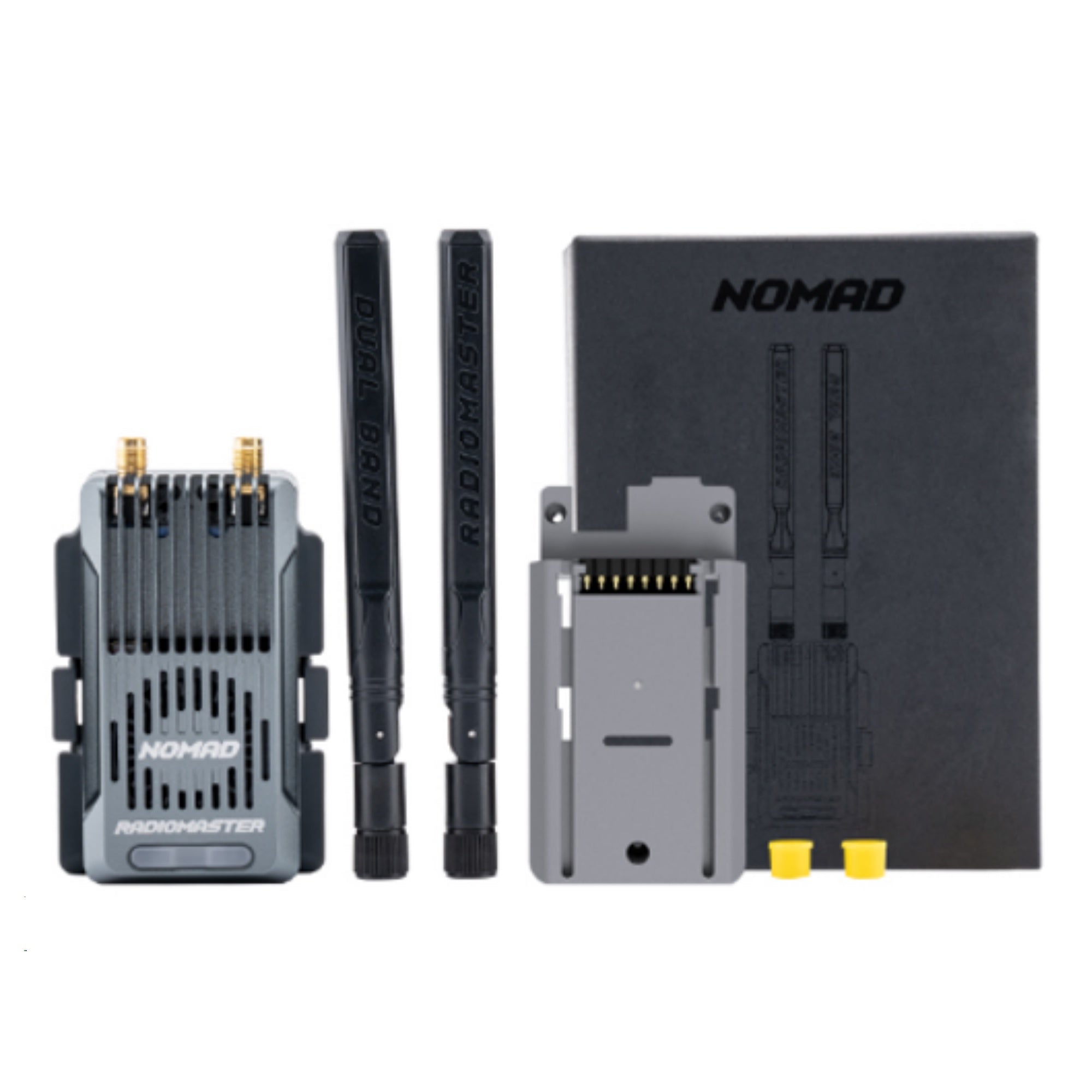

The Radiomaster Nomad Dual 1-Watt Gemini Xrossband ExpressLRS Module features twin dual-band 1W transceivers. With the dual-band ELRS Gemini Xrossband, you'll enjoy unmatched reliability. It operates on 2.4GHz and 868/915MHz frequencies. The powerful cooling system ensures the module stays cool even on hot days. This module has an ESP32 main MCU and an ESP32c3 auxiliary MCU. It uses Semtech LR1121 RF chips. It offers a frequency range of 2400MHz - 2479MHz / 903MHz - 927MHz, a maximum packet rate of 500Hz, and a minimum receiver refresh rate of 50Hz. The RF output power is 1,000mW x2. It supports Wi-Fi and Bluetooth, and has a built-in RGB light strip. It comes with a DC 6V - 16.8V XT30 power supply. The module weighs 87.2g with the antenna and 71g without it, and its dimensions are 80*45*40mm without the antenna. It includes a Nomad Dual 1-watt Gemini Xrossband ExpressLRS Module, 2 dual band 2.4GHz/915MHz antennas, a Nano Adapter, a Manual card, and a QC card.

Using the Radiomaster Nomad Dual 1-Watt Gemini Xrossband ExpressLRS Module is easy. First, connect it to your device using the appropriate module bay adapter (JR standard 5pin socket or Nano standard 8pin socket). Make sure to use a power supply within the range of DC 6V - 16.8V. When you're done using it, turn it off properly. As for maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or humidity. If you notice any issues, refer to the manual card that comes with the module. And always handle the antennas carefully to ensure the best performance.
