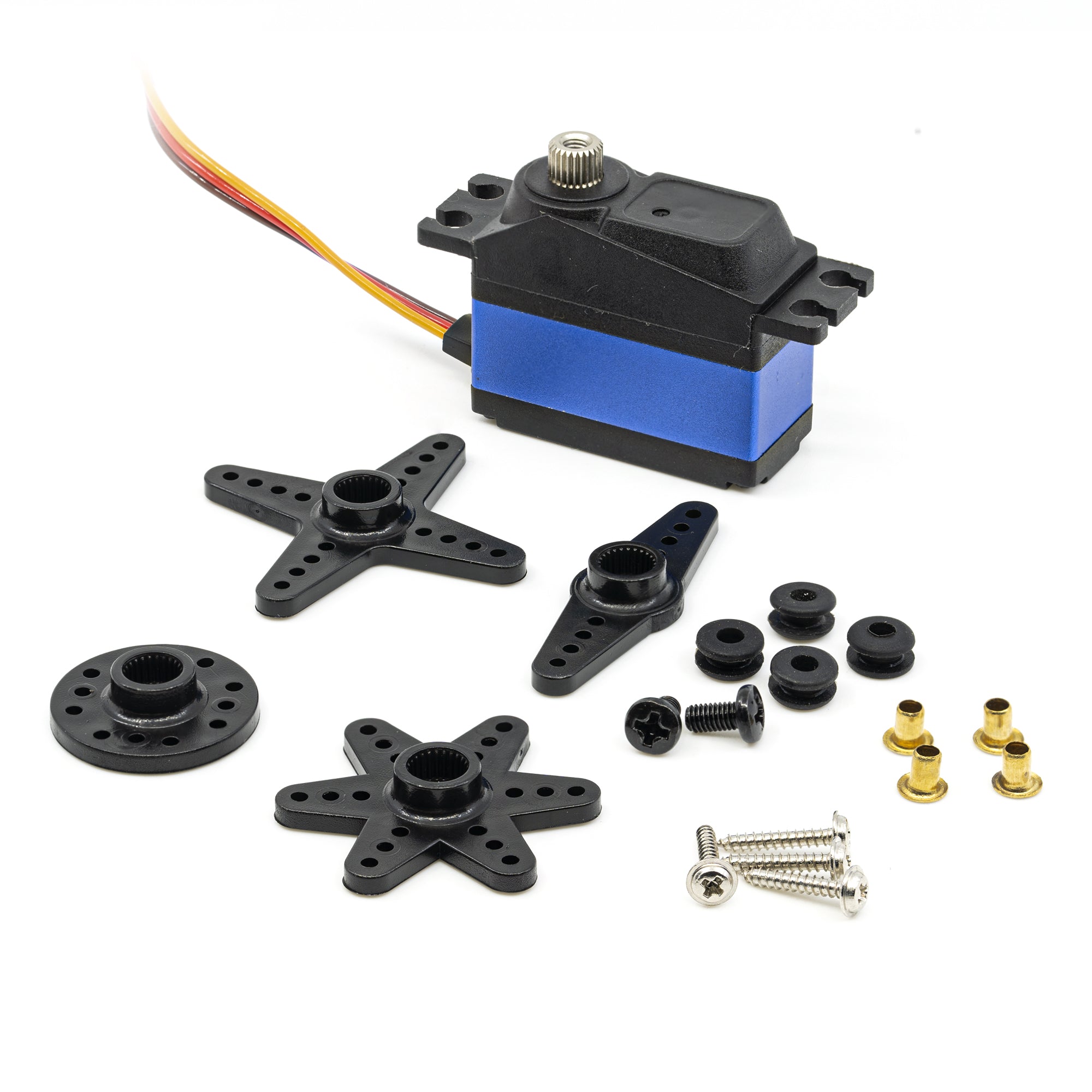

TBS Digital Servo - Replacement for CAIPIRINHA 2

The TBS Digital Servo is a great replacement for CAIPIRINHA 2. It features a lightweight design with a weight of 28g±1g and compact size of 35*15*30mm. It uses a coreless motor and ball bearings, ensuring high - efficiency operation. With a wide operating voltage range from 4.8 to 6.0 Volts and a temperature range from - 10 to +50 degree C, it's suitable for various environments. The servo offers fast operating speeds, 0.12sec/60° at 6.0V and 0.10sec/60° at 7.4V no - load. It has strong stall torques, 2.2kg.cm at 6.0V and 2.5kg.cm at 7.4V. The operating angle is 45 degrees on one side with a 500 - usec pulse traveling. The connector wire length is 250mm, providing flexibility in installation.

Using the TBS Digital Servo is easy. First, make sure the voltage of your power source is within the 4.8 - 6.0 Volts range. Connect the servo to your device using the 250mm connector wire. When operating, note that the servo rotates anticlockwise with a pulse traveling from 1000 to 2000usec. Keep the operating temperature between - 10 and +50 degree C to ensure optimal performance. For maintenance, avoid exposing the servo to extreme conditions. If you notice any unusual noise or slow operation, check the power supply and connections. This servo has a long lifespan if properly used and maintained.
