Product Information

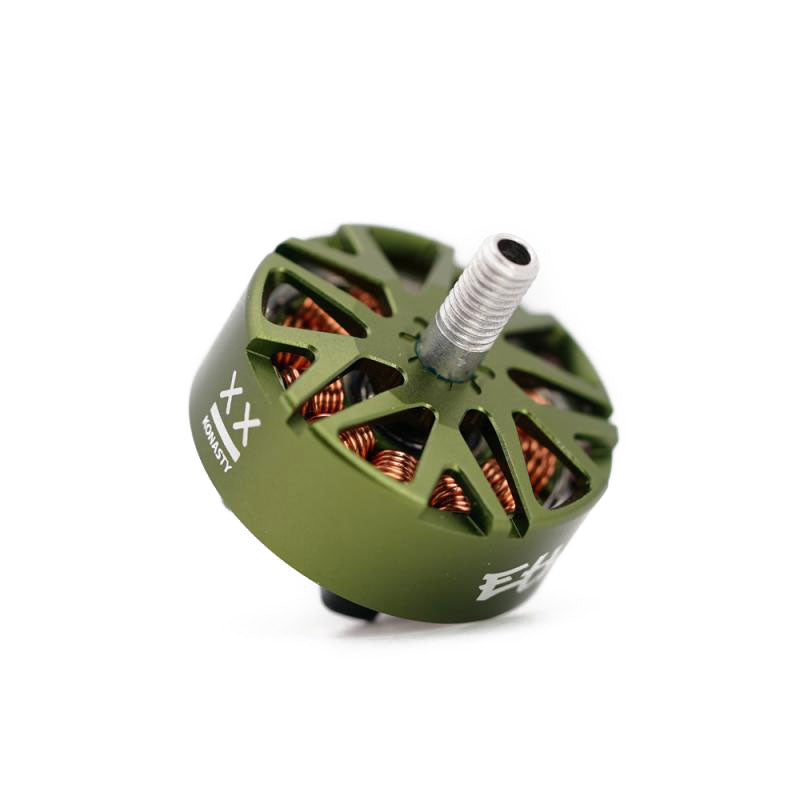

Are you in Australia and eager to purchase the TBS Ethix Konasty Moon Boot V2 motor? It's been two years since the first - version Moon boot hit the market, and now, here comes V2! This new motor offers the same smooth operation, top - notch quality, and high efficiency as the original. But the real game - changers are its added high - end power when you need a boost and low - end control for those delicate maneuvers. Thanks to a larger stator size and two KV options, it's a versatile choice for everything from freestyle flying to long - range cinematic shots. Check out its detailed specifications: Stator Size (Diameter): 25mm*7mm, Kv: 1750kv, Magnets: N52SH Curved, Windings: 10turn DLRK, Shaft Length (mm): 11.5mm, Shaft Diameter (mm): 4mm, Shaft material: Steel, Bearing: NSK684, Weight (With Wires) (g): 41.7g, Cells (Lipo): 6S, Max Current (A): 45A, Max Burst Current (A): 60A, Internal Resistance (Rm): 64mΩ, Wire Spec (AWG): 20#, Base Mounting Pattern: 16x16mm, Base Mounting Thread: M3 Thread, Motor Overall Dimensions: φ31.8mm*19.3mm. Browse more TBS Motors and all Motors.
Using this TBS Ethix Konasty Moon Boot V2 motor is straightforward. First, make sure to mount it properly using the 16x16mm base mounting pattern and M3 thread. Connect it with the appropriate 6S Lipo battery. When flying, you'll enjoy its smooth operation, with great power on the high end for exciting moves and excellent control on the low end for precision. As for maintenance, keep it clean from dust and debris. Check the shaft and bearings regularly for any signs of wear. If you notice any abnormal noise or performance issues, stop using it immediately and inspect it. Also, always handle the motor with care to avoid damage to the windings and other components.
