TBS Lucid 12s 90A ESC

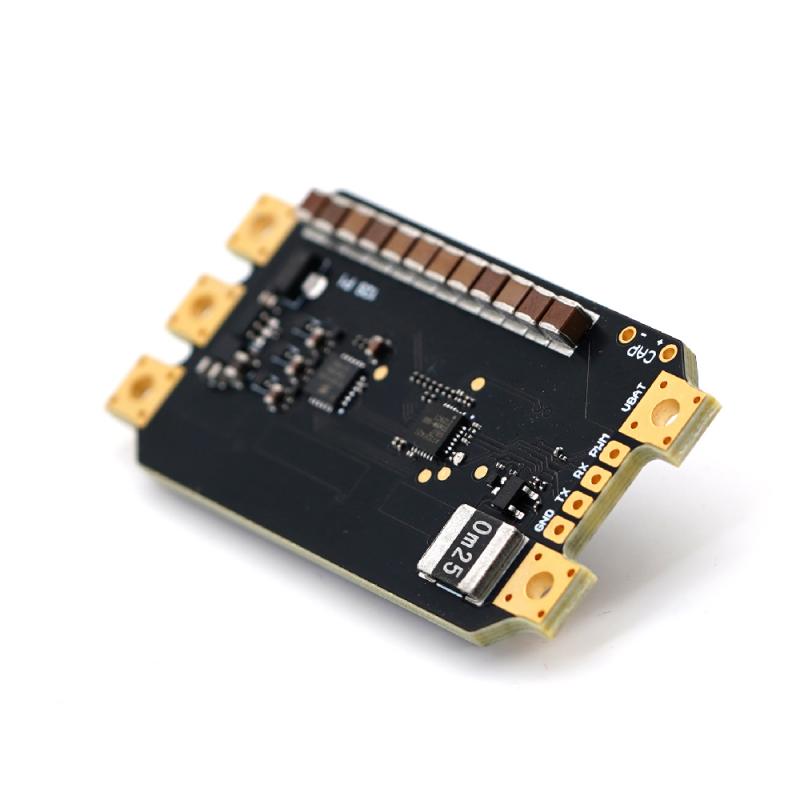

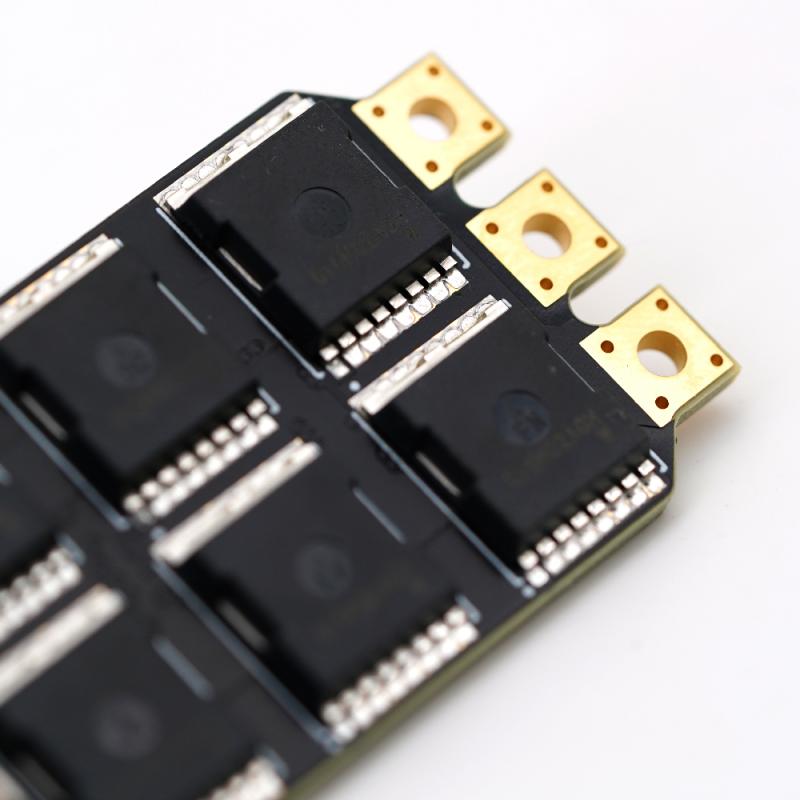

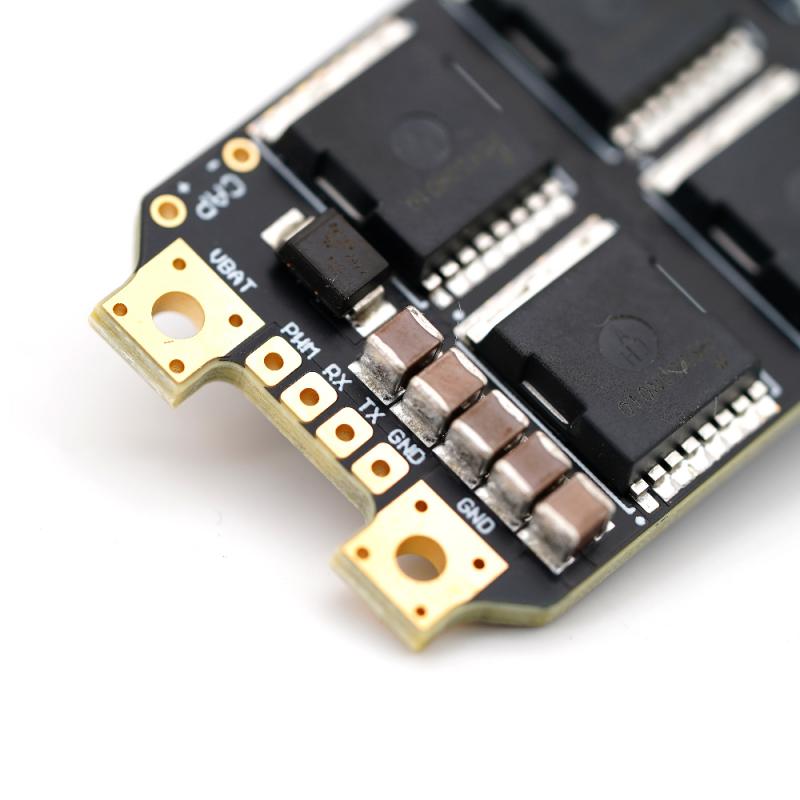

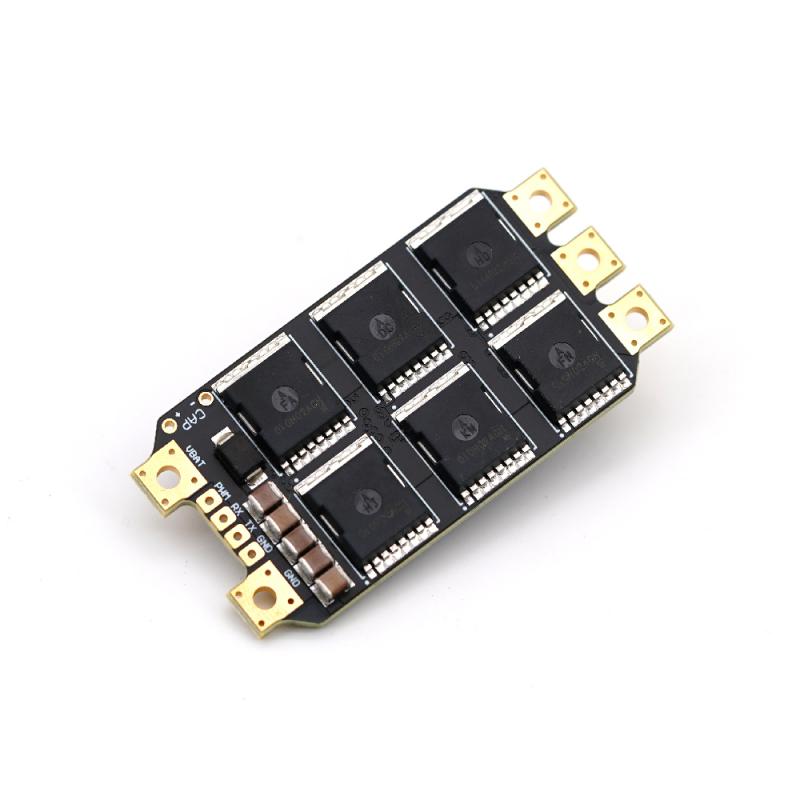

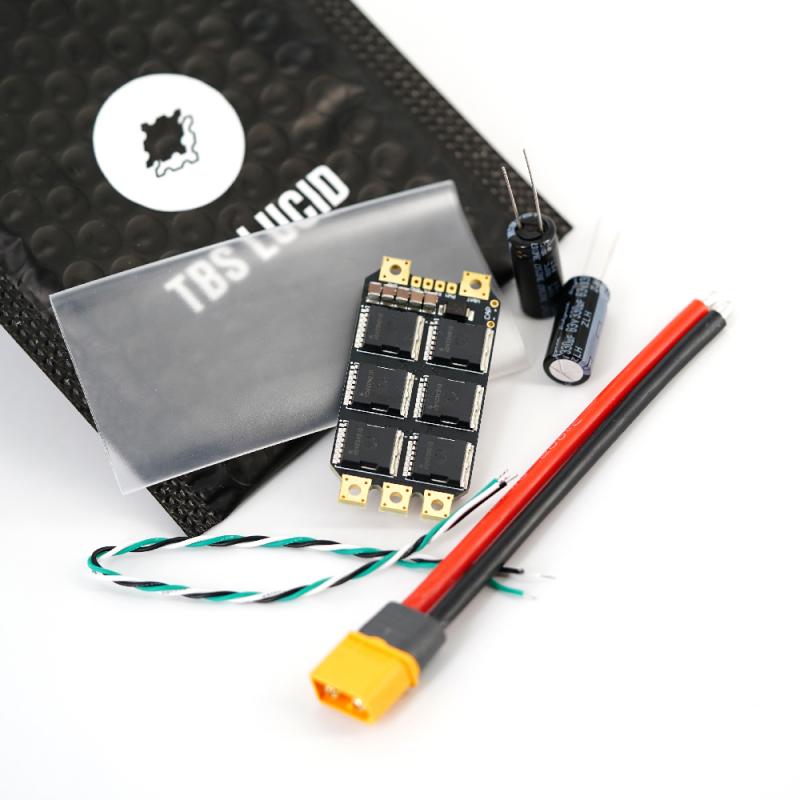

The TBS Lucid 12S ESC is a top - notch choice for high - voltage and high - power applications. It offers high reliability and power right at your fingertips. This ESC features an 8 - layer high - current density board with great heat resistance, allowing it to endure the toughest conditions during daily flights while providing excellent payload capacity. With built - in TVS, voltage spikes are no longer a worry. By focusing on thermal dissipation from the start, it achieves an amazing power - to - weight density without heavy heat sinks. Thanks to a close collaboration with AM32, it delivers outstanding performance at an affordable price. Specifications include ESC software AlkaMotors32 (AM32), target AM32_TBS_12S_F421, rated current 70A for 60 seconds and 90A for 40 seconds, peak current 120A for 30 seconds, propellers up to 15' (over 7' needs good airflow), input 3 - 12S Lipo, protocol Bi - directional Dshot 300/600 and KISS ESC Telemetry, an ESC current port, no BEC, size 57.75mm x 29mm, and weight 19g excluding cable and capacitors. It comes with 1x TBS Lucid 12S ESC, 1x XT60 12 AWG wire, 1x 3 - color wire for PWM or Serial (D - Shot, CRSF), 1x transparent shrink tube, and 2x 330uF 12S low - ESR Capacitor.

Using the TBS Lucid 12S ESC is easy. First, connect the XT60 12 AWG wire to your power source and use the 3 - color wire for PWM or Serial connections as needed. When choosing propellers, make sure they are within the recommended size. If you use propellers over 7', ensure there is good airflow. As for maintenance, keep an eye on the heat generated during use. Since it has good heat resistance, you don't need to worry too much, but if it gets extremely hot, give it a break. Also, check the capacitors regularly to ensure they are in good condition. When not in use, store it in a dry and cool place to prolong its lifespan.
