TBS Lucid 8S 4in1 ESC

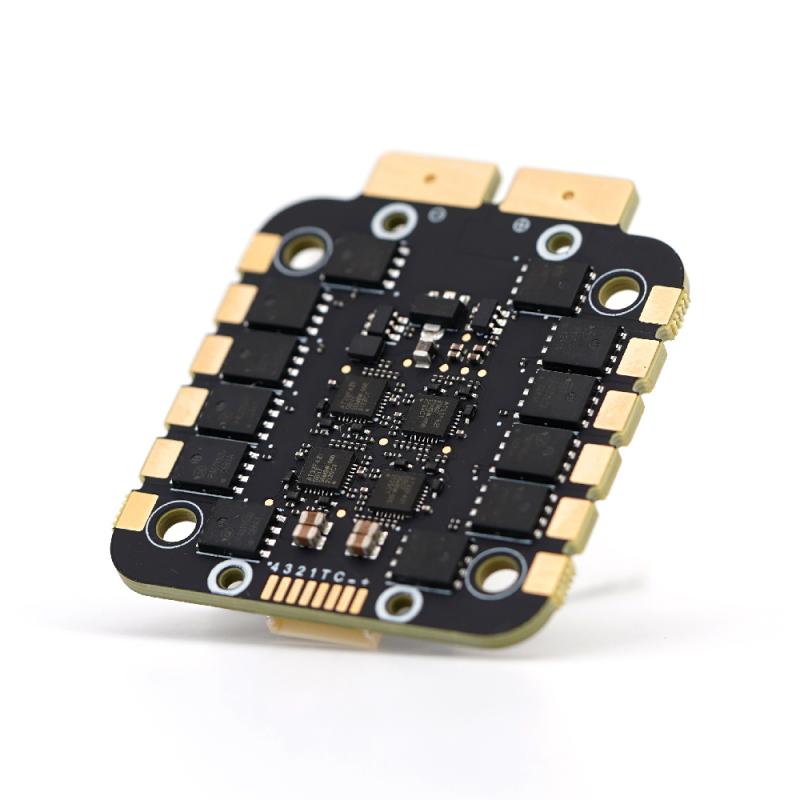

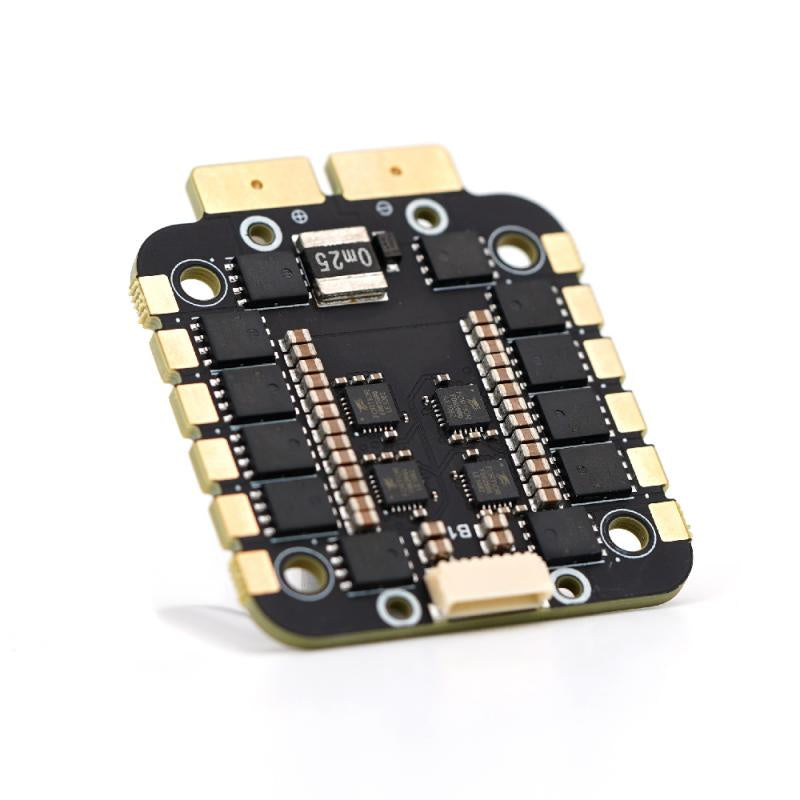

The TBS Lucid flight stack is TBS's latest engineering marvel. It's designed for both racing and freestyle, perfect for experienced pilots and newbies alike. The ESC features an 8 - layer high - current density board with double the market - average on - board capacitance. It can handle the toughest FPV flights, offering smooth flight and rapid acceleration. By focusing on heat dissipation, it achieves great power - to - weight density without heavy heat sinks. Thanks to a close partnership with AM32, it delivers top - notch performance at an affordable price. Specifications include AlkaMotors32 (AM32) ESC software, a tbslu8s4in1 target, 70A x 4 rated current for 60 seconds, 85A x 4 peak current for 30 seconds, support for up to 11' propellers (good airflow needed over 7'), 3 - 8S Lipo input, bi - directional Dshot 300/600 protocol, KISS ESC Telemetry, an ESC current port, no BEC, 50mm*42mm size, multiple mounting options, and a weight of 17.58g (22g with brackets). The package includes 1x TBS Lucid 8S 4in1 ESC, 4x 2.2x4mm standoffs, 1x Aluminium top bracket for 20x20 FCs, 1x XT60 power connector, 1x 560uF 8S Capacitor, 4x M2x12 screws, and 4x M2x14 screws (for 30x30 mount).

Using your TBS Lucid 8S 4in1 ESC is easy. First, make sure to connect the power using the XT60 power connector. Attach the propellers, but remember if they are over 7', you need to ensure good airflow. The ESC has different mounting options, so choose the one that fits your setup, whether it's the Gorilla - mount or brackets for 20x20 mm. When it comes to flying, the ESC offers smooth performance and rapid acceleration, perfect for racing and freestyle. As for maintenance, keep an eye on the heat. Since it's designed for good heat dissipation, it should handle normal use well. But if you notice it getting unusually hot, check the airflow around it. Also, make sure all the connections are tight and in good condition. And if you want to get the most out of it, keep the software updated. Enjoy your flights with this amazing ESC!
