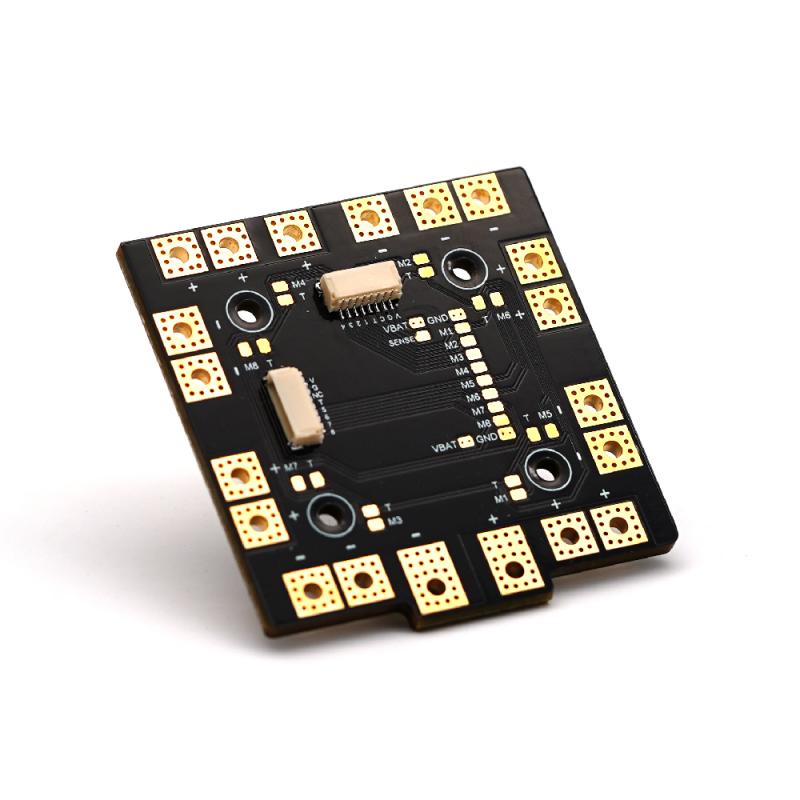

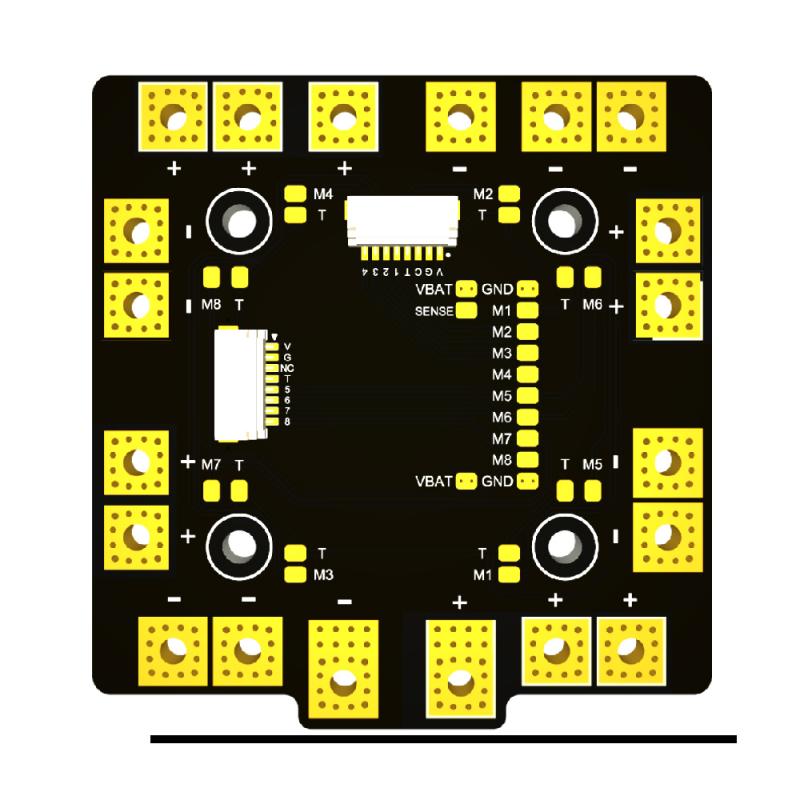

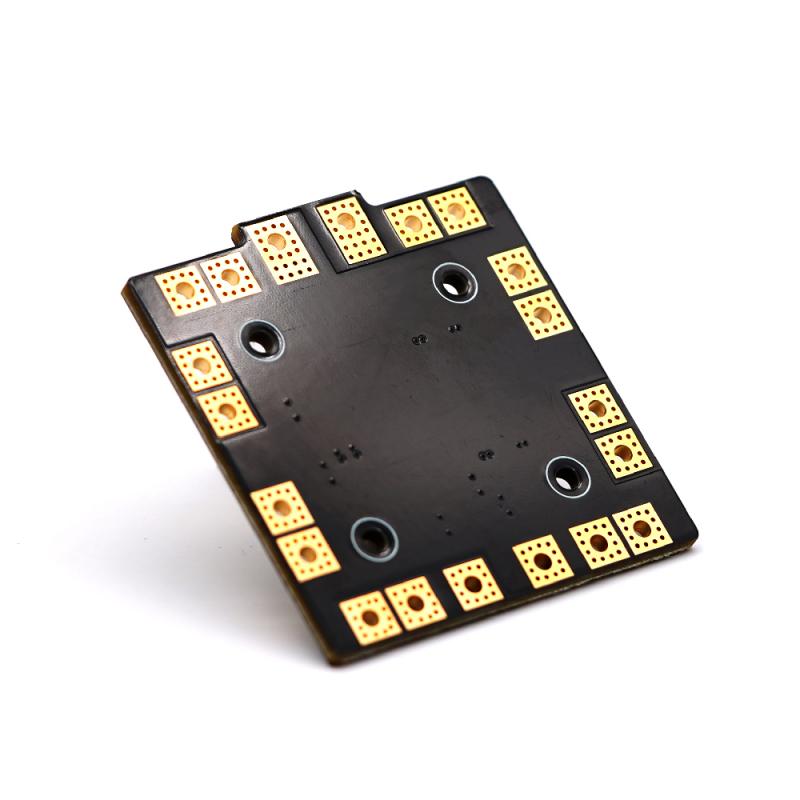

This TBS Lucid PDB 500A is a high - current power distribution board designed for large quadcopters to octocopters. It's made of an 8L 3oz thick copper plate and can handle a continuous current of 500A. With a size of 58 x 62mm and mounting holes at 30.5 x 30.5, it's easy to install. The 3mm PCB thickness ensures durability. It supports up to 8 channels of ESC and is plug - and - play with the Lucid FC line. It also features a telemetry pad, VBAT sensor pad, and supports an external current sensor. Weighing only 36g, it's a lightweight yet powerful option for your large drones. Browse more TBS, FPV, and ESC products.
Using the TBS Lucid PDB 500A is straightforward. First, make sure your drone is powered off. Mount the PDB on your drone using the 30.5 x 30.5 mounting holes. Connect the ESC channels to the PDB, ensuring a maximum of 8 channels are used. Plug it into the Lucid FC line for seamless operation. When it comes to the telemetry and VBAT sensor pads, connect your relevant sensors to gather important data. If you want to use an external current sensor, it's supported and can be easily connected. As for maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or moisture. Regularly check the connections to make sure they are secure. If you notice any damage to the copper plate or PCB, it's best to replace the PDB to ensure safe and efficient operation of your drone.
