TBS Unify Pro Nano 5G8

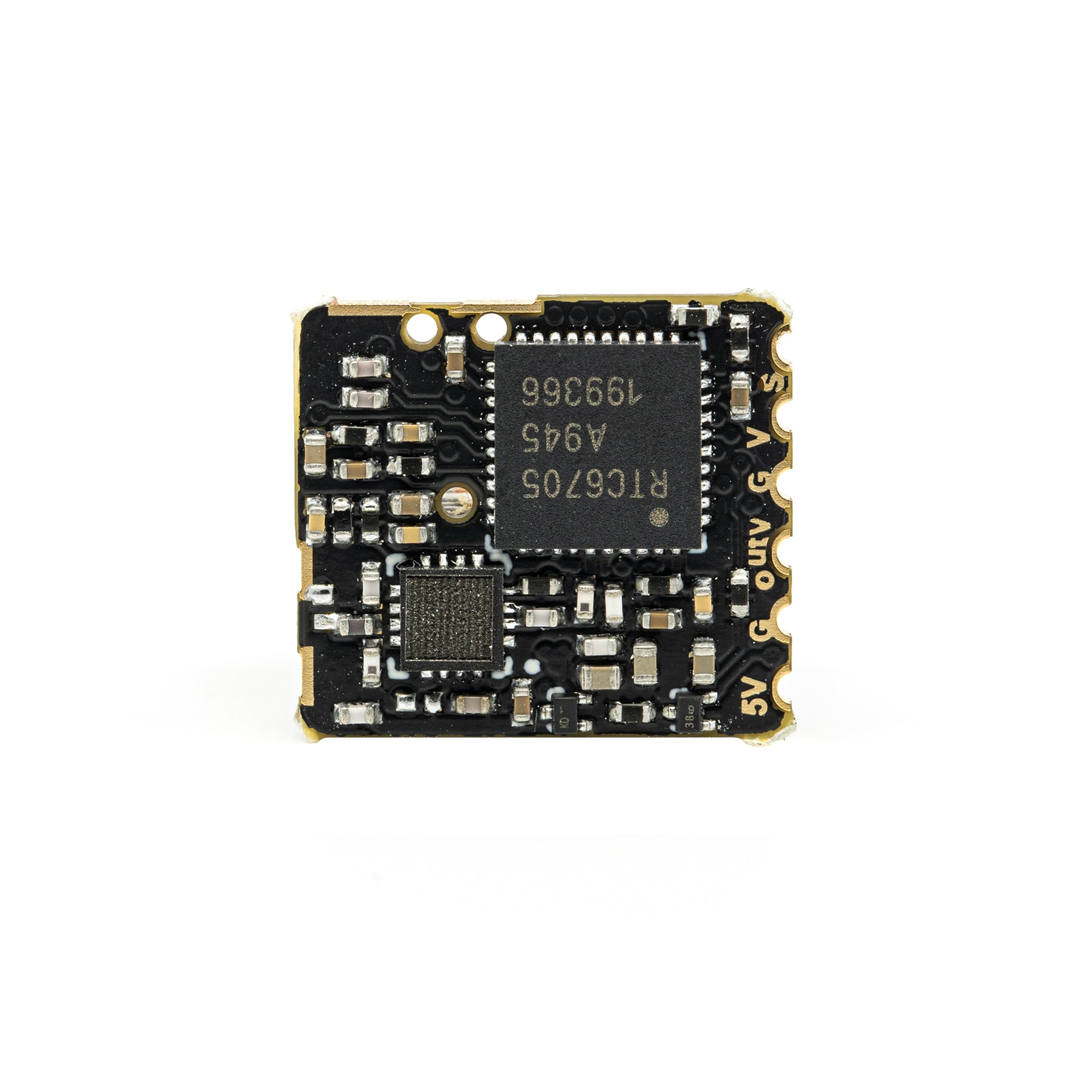

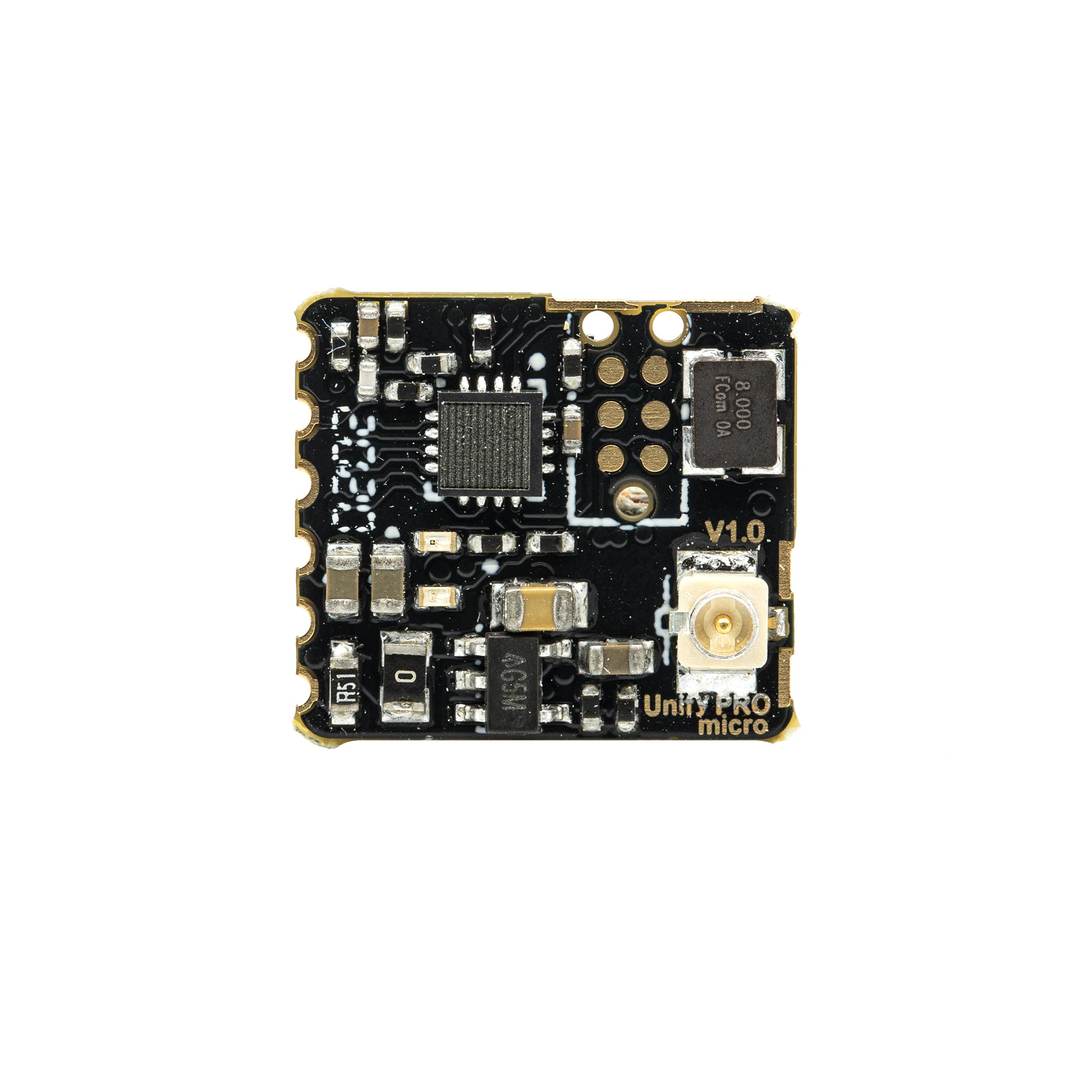

Are you in Australia and on the hunt for a top - notch FPV transmitter? The TBS Unify Pro Nano 5G8 is your answer! It's designed for the era of smaller builds and the rapid innovation of micro quads. TBS focused on size to create the tiniest VTx possible, without sacrificing quality. This transmitter comes with the trusted Unify Pro pedigree, an upgraded u.FL connector, and industry - standard Smart Audio support. You'll be amazed by its long - range performance, clear signal, and efficient signal spacing. Here are the key specs: It operates only on 4.5V - 5V. You can choose between 25mW and 50mW power levels. The interface features SmartAudio and a capacitive button, or you can use the included external tactile button. It weighs just 1.4g with the antenna and has a size of 13.2mm x 14.6mm. The upgraded u.FL antenna connector has an antenna length of 45.6mm end - to - end. It also uses TBS Tech like Smart Audio and Clean Switch. What's in the box? You'll get 1 Unify Pro nano 5G8 VTX, 1 button switch, 1 TBS UNIFY PRO 5G8 Linear Antenna, and 6 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow). Manuals in English and German are also provided.

Using the TBS Unify Pro Nano 5G8 is easy. First, make sure you connect it to a power source with a voltage between 4.5V and 5V. You can adjust the power level to either 25mW or 50mW according to your needs. To change settings, you can use the capacitive button or solder the external tactile button. When it comes to the antenna, make sure it's properly connected to the u.FL connector. As for the connection wires, use them to link the transmitter to other components in your setup. Now, for some important notes. Never use a power source outside the specified voltage range as it could damage the device. Be gentle when handling the antenna to avoid breaking it. For maintenance, keep the transmitter clean and dry. If it gets dirty, use a soft, dry cloth to wipe it. Check the connection wires regularly for any signs of wear and tear. And if you need more help, refer to the provided manuals.
