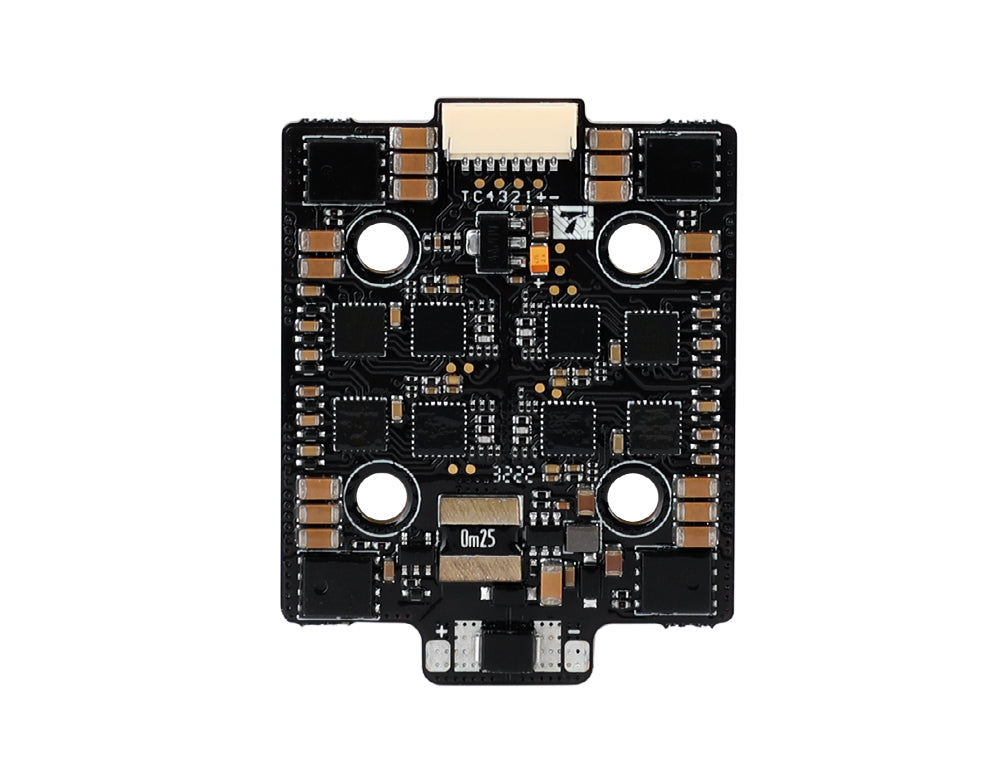

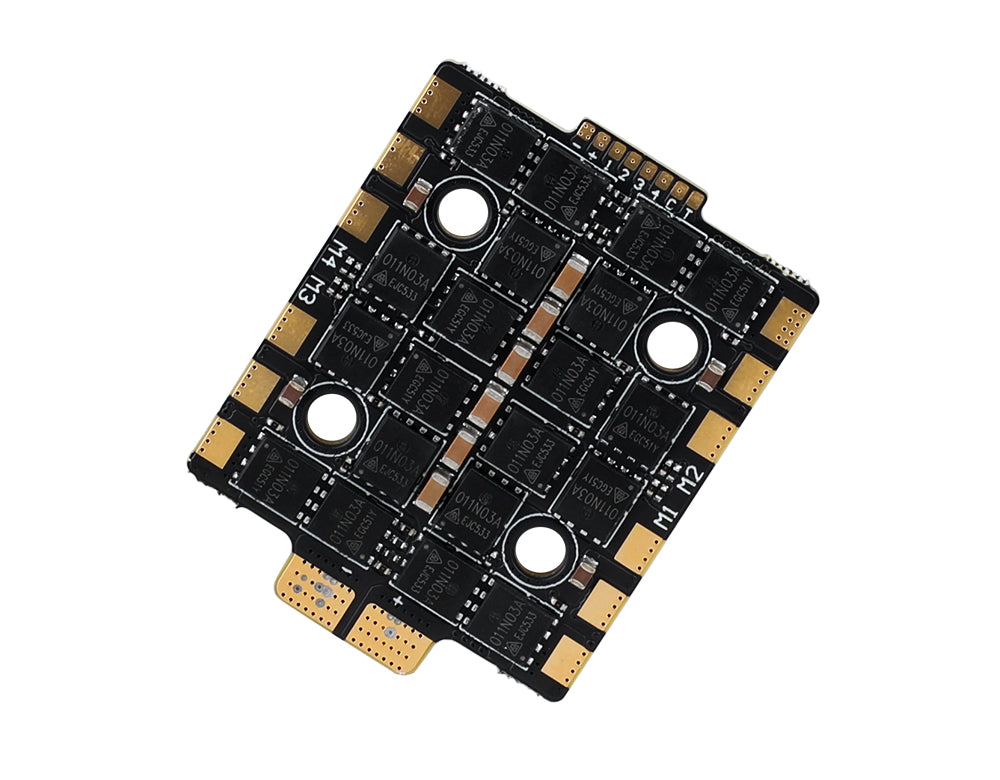

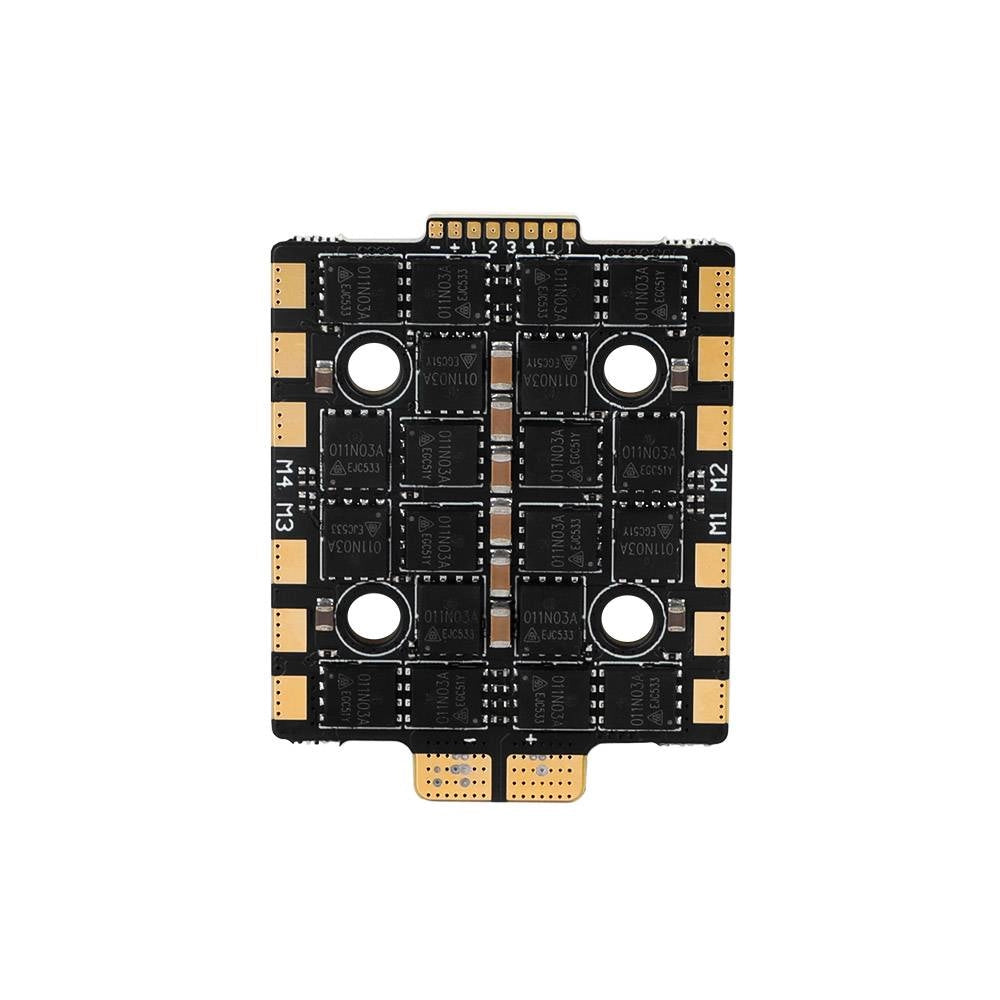

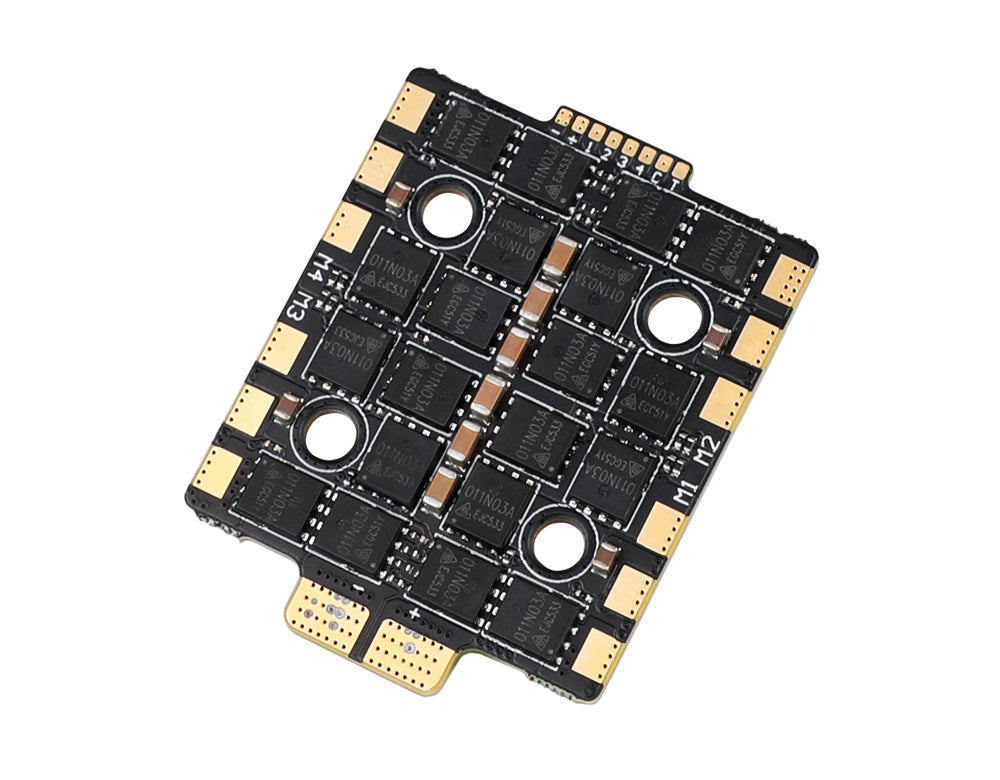

The T-Motor Mini 4-in-1 AM32 F60A ESC is a high - performance electronic speed controller. It supports 8S voltage, comes with a compact 20x20mm mounting pattern, and uses large MOSFETs. These large MOSFETs boost heat dissipation by over 60%, greatly extending the ESC's lifespan. It offers high current, high voltage tolerance, low internal resistance, and real - time temperature monitoring, ensuring smooth operation with high KV motors and no desync issues. With a PWM frequency range of 16KHz - 96KHz (default 24KHz), it's versatile for different needs. Its specifications include 200A amperage scale, 60A constant current, and 70A burst current. It comes with an Amass XT60H - M cable, an FC connector, 10 grommets, and a capacitor.
Using the T - Motor Mini 4 - in - 1 AM32 F60A ESC is easy. First, connect the Amass XT60H - M cable to your power source, and use the FC connector to link it to your flight controller. Make sure to place it in a well - ventilated area due to the heat it generates during operation. When it comes to voltage, ensure your power source is within the 4 - 8S range. For temperature, keep an eye on the real - time monitoring. If the temperature gets too high, stop the operation immediately to prevent damage. As for maintenance, check the mounting holes regularly to ensure they're secure. Also, inspect the cables for any signs of wear and tear. Clean the ESC gently with a dry cloth to keep it in good condition.
