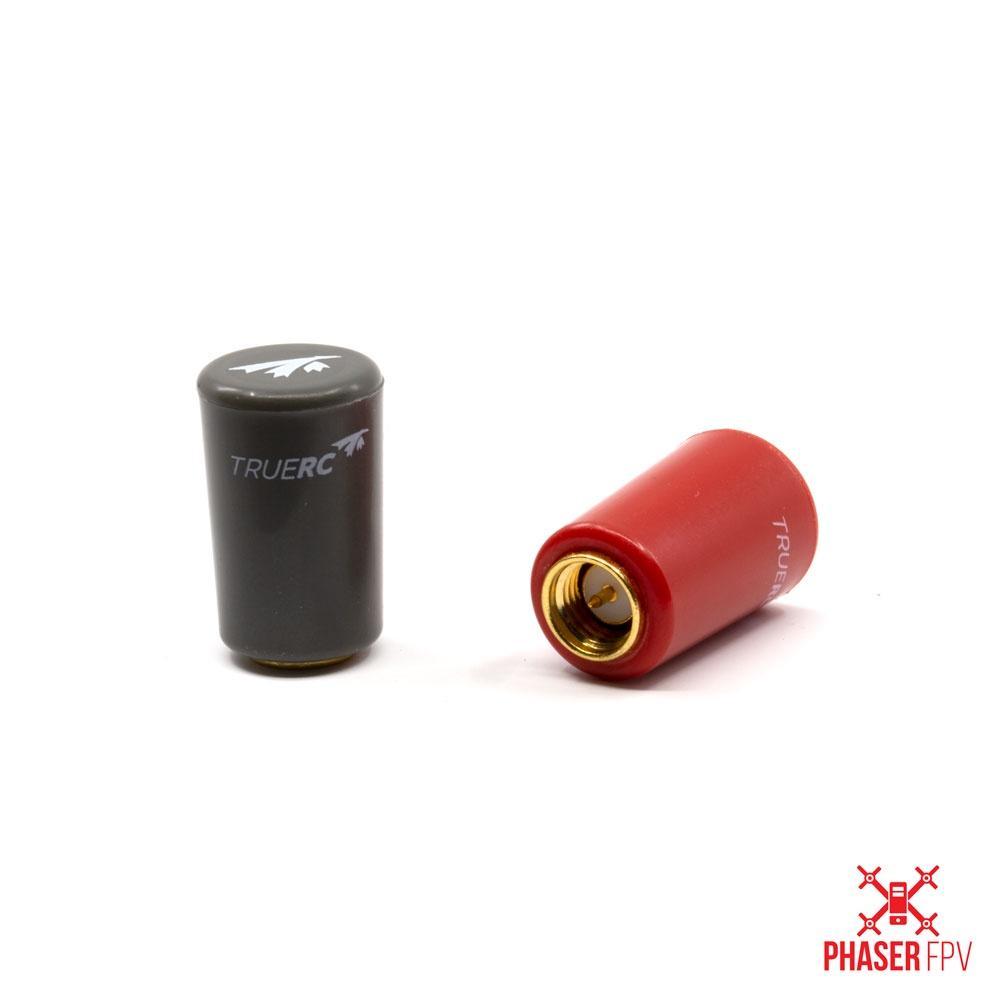

TrueRC Singularity 5.8 5.8GHz STUBBY SMA Version Antenna (1pc)

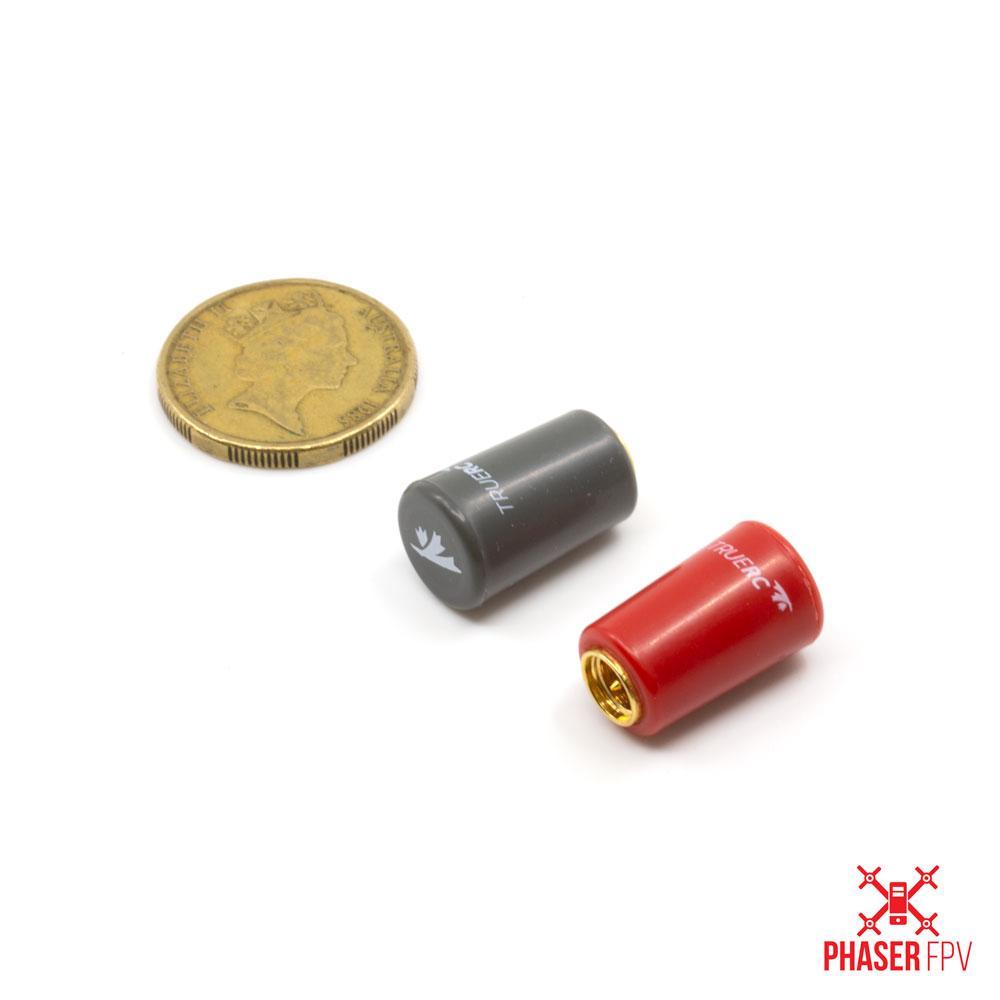

The TrueRC Singularity 5.8 Micro Antenna is the next - gen of the world's top - selling FPV antennas. It offers the same amazing performance as the original AXII antenna but is half the size and weight. This uniquely designed antenna uses a new RF pathway tech (unique hybrid network), making it super lightweight at just 1.6g, and it's the smallest and lightest 5.8GHz CP antenna out there. Despite its small size and light weight, it doesn't compromise on performance. In fact, it outshines most other antennas in every aspect. Precision engineering gives it near - perfect Cross - Polar Rejection, resulting in true circularity. An RHCP Micro AXII antenna can reject almost 100% of LHCP signals, giving you a crystal - clear image free from multi - pathing noise. It also has a high max gain of 1.6dBic for better range and penetration. With a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz - 6.0GHz, you'll always have a clear and strong signal. The Singularity 5.8 is built ultra - durable to withstand the rough use by FPV pilots. The whole antenna array is safely protected inside an injection - moulded outer casing made of impact - resistant polycarbonate, which is sealed to safeguard the internal antenna elements. Specifications: Gain: 1.9dbic; Cross - Polar Rejection: - 15 to - 30dB (1.9%); Bandwidth: 5.6GHz - 6.0GHz; Radiation Efficiency: 99%; SWR: <=1.5:1; Weight: 3.7 g; Size: 12.6mm x 20mm; Connector: SMA. It includes 1x TrueRC Singularity 5.8 STUBBY Antenna.

Using the TrueRC Singularity 5.8 Antenna is easy. Just connect it to your FPV device via the SMA connector. Make sure the connection is tight for a stable signal. When flying your FPV drone, the antenna will help you get a clear and strong signal within the 5.5GHz - 6.0GHz frequency range. For best results, try to keep the antenna in an open space away from any large metal objects that could interfere with the signal. As for maintenance, the antenna is quite durable thanks to its impact - resistant polycarbonate casing. But still, avoid dropping it or subjecting it to hard impacts. If it gets dirty, you can gently wipe it with a soft, dry cloth. Don't use any harsh chemicals as they might damage the casing. And that's all you need to know to get the most out of your TrueRC Singularity 5.8 Antenna.
