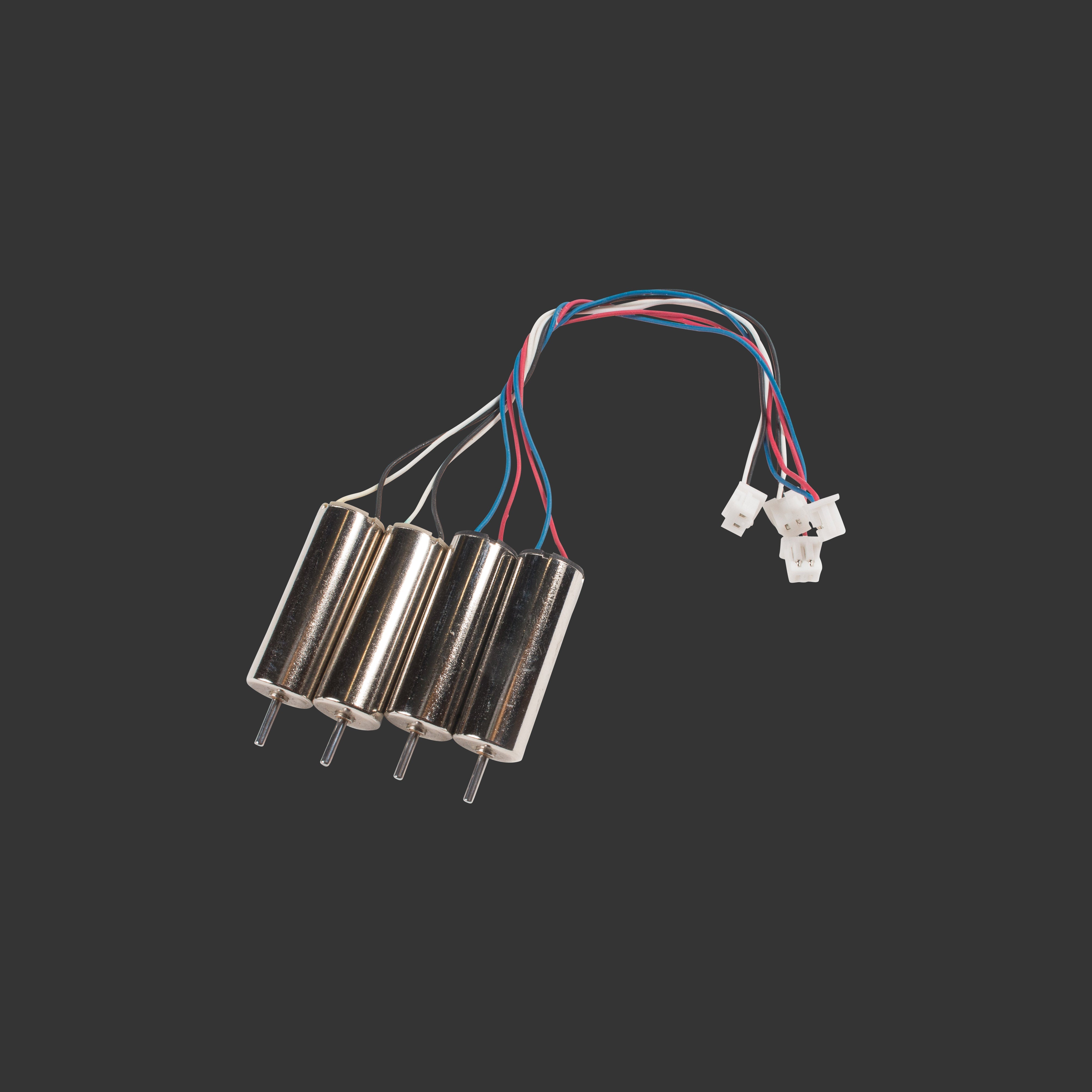

MMW Micro Motor Warehouse CL-0716-17 coreless motor

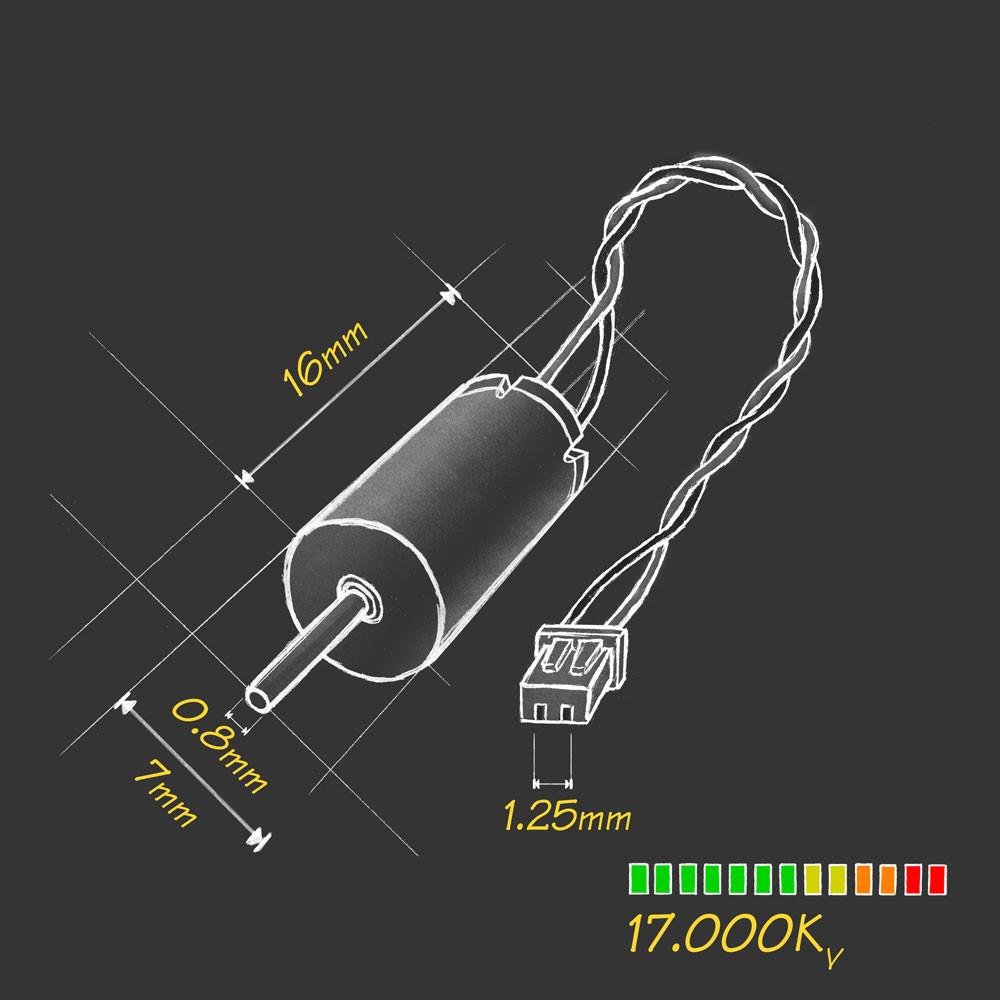

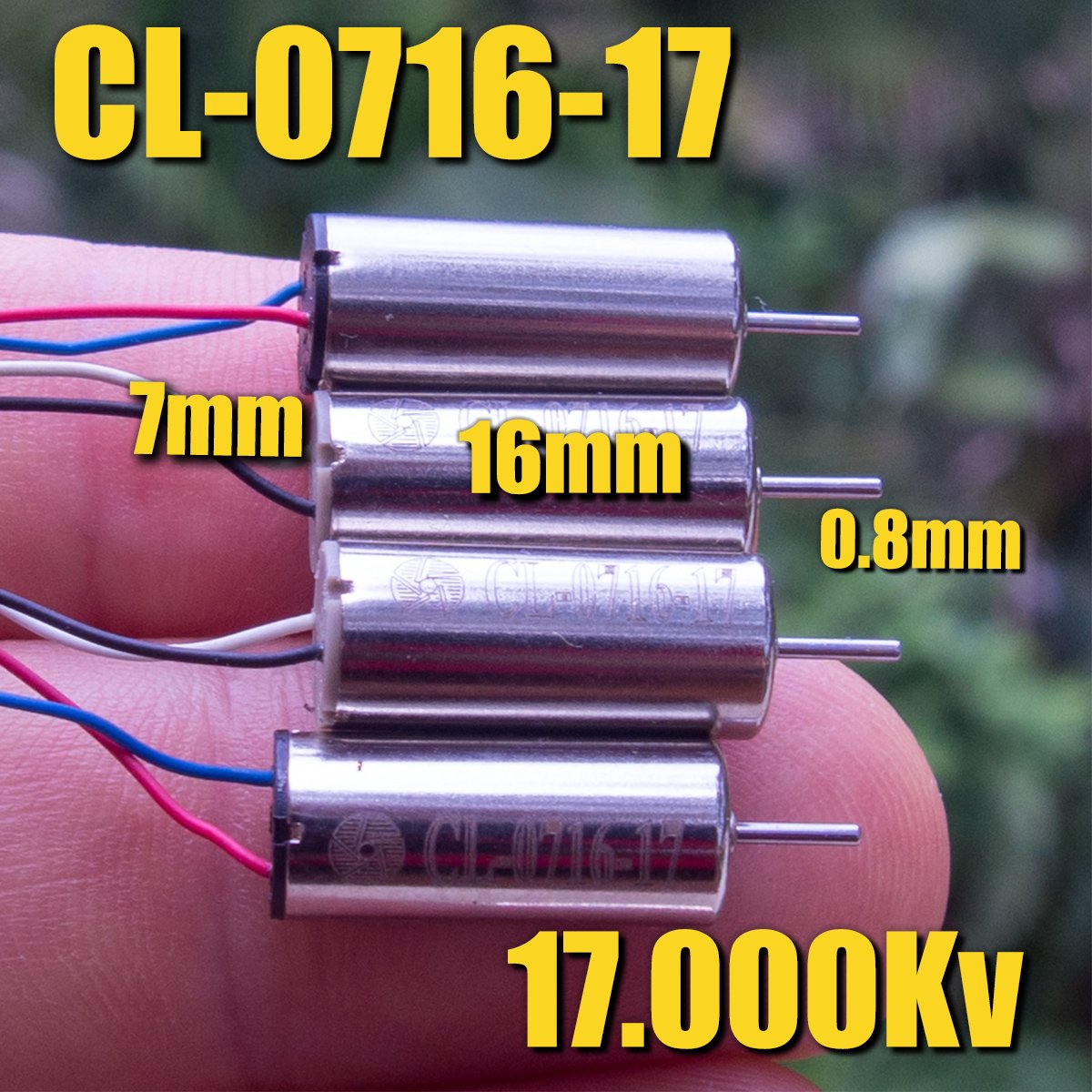

This is a 7mm coreless motor from MMW Micro Motor Warehouse. It's important to note that it doesn't fit regular Whoop frames. The frame in the above video is from the E011. This motor offers a speed of 17,000Kv and operates at a voltage of 1.5 - 3.7V. Its max load current is 2A, and it has a lifetime rating of 5 - 6 hours. The motor's dimensions are: can diameter 7mm, can length 16mm, shaft diameter 0.8mm, shaft length 5mm, and it weighs 2.9g. The wire length is 8cm, and it comes with Micro - JST 1.25 plugs. For details on installing this motor into the Nano QX 3D, click here.

Using this motor is straightforward. First, make sure you have the right frame as it doesn't fit regular Whoop frames. Check the voltage range - it works best between 1.5 - 3.7V. Don't exceed the max load current of 2A to avoid damaging the motor. When installing it into the Nano QX 3D, click on the provided link for detailed steps. For maintenance, keep it clean and dry. After using it for 5 - 6 hours (its lifetime rating), consider replacing it for optimal performance. Also, be careful with the Micro - JST 1.25 plugs when connecting the wires.
