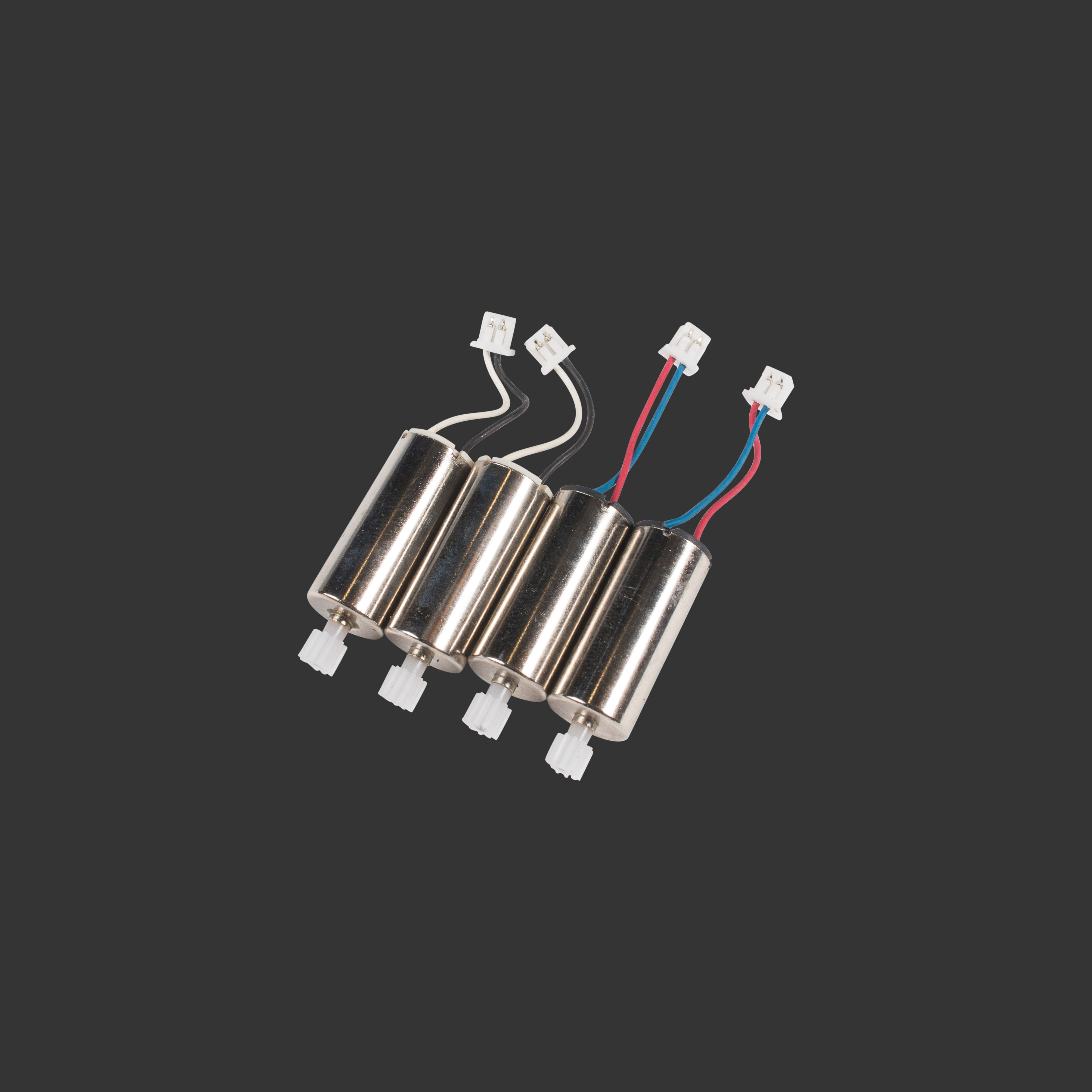

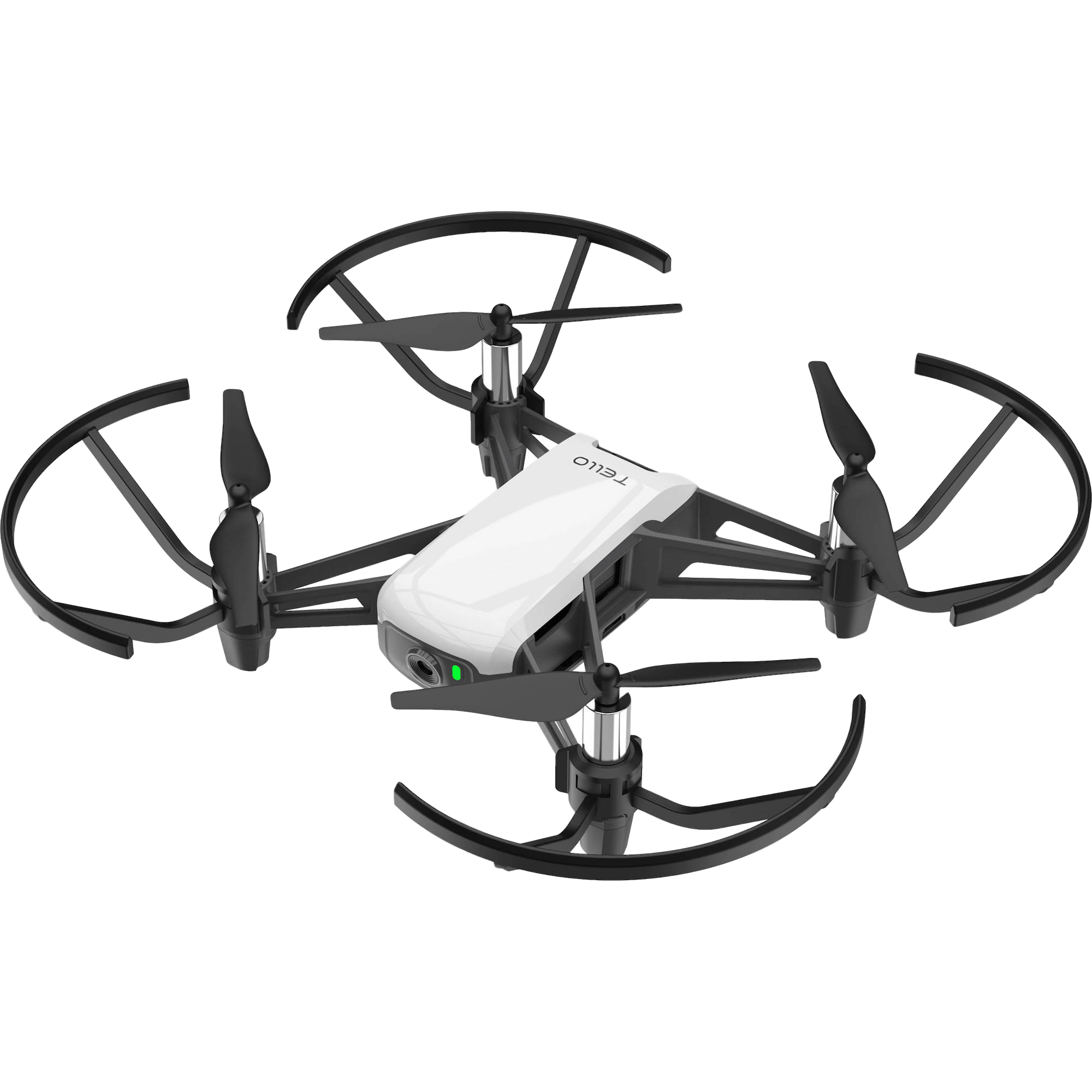

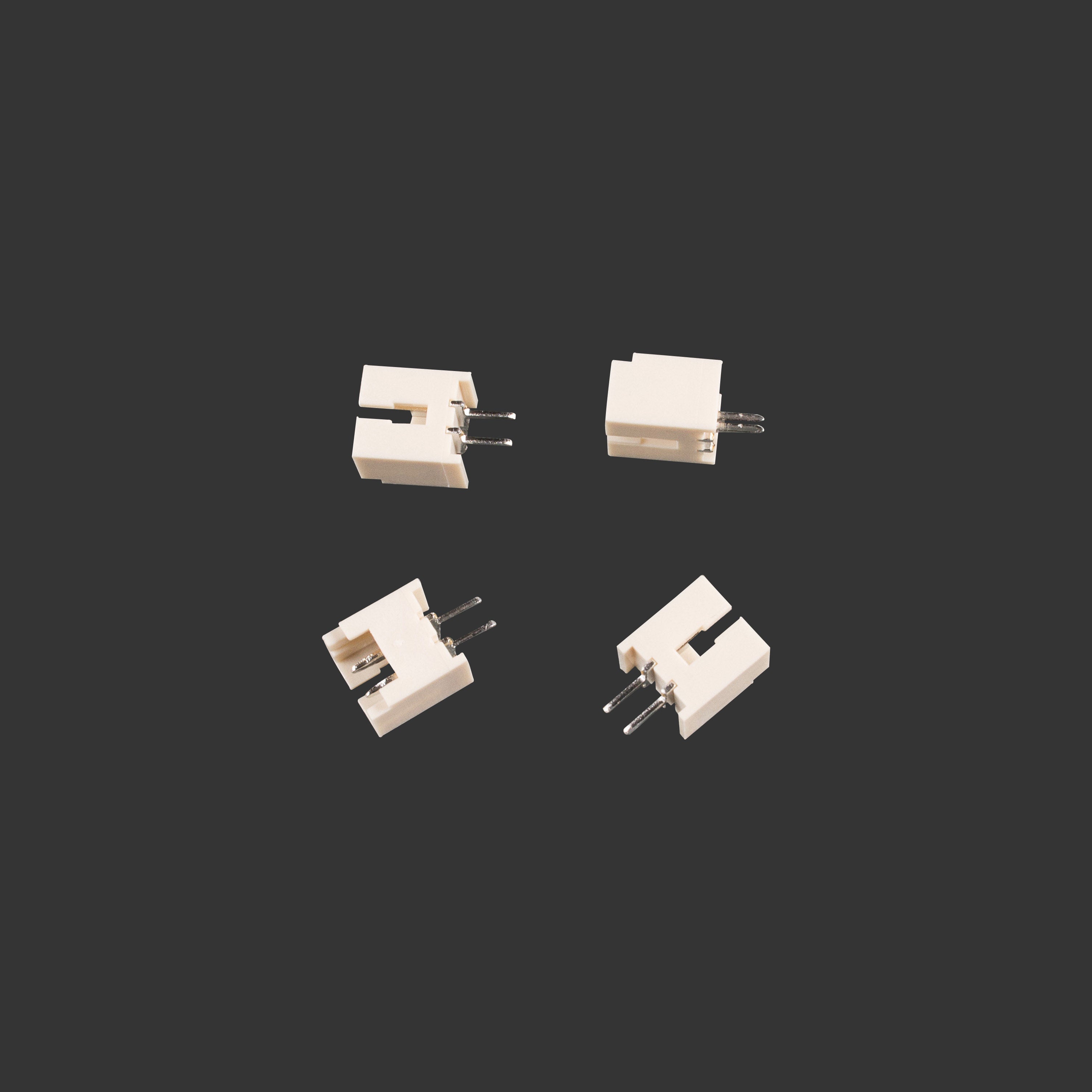

Upgrade your Ryze Tello with these high - performance replacement motors! Motor connectors are included. As the Tello flight controller lacks motor connectors, you'll need to solder Micro - JST 1.25 connectors to the wire ends. The package includes 2 CW motors, 2 CCW motors, and 4 Micro - JST - 1.25 sockets. Instructions are easy: solder connectors to motor wires following color - coding (black -> black, white -> white, blue -> black, red -> blue). Performance is great with a speed of 15,000Kv, operating voltage of 1.5 - 3.7V, and a factory - rated lifetime of 5 - 6 hours. Dimensions are: can diameter 8.5mm, can length 20mm, shaft diameter 1mm, shaft length 5mm, and weight 4.9g. Each motor pack has equal CW and CCW motors. To get the best performance and lifespan, don't run them in reverse. Motor rotation and polarity are shown by wire color: CW is red +, blue -; CCW is white +, black -.
Using these motors for your Ryze Tello is easy. First, you'll need to solder the Micro - JST 1.25 connectors to the motor wires as per the color - coding instructions. Make sure to connect the wires correctly to avoid any issues. When it comes to running the motors, remember that each pack has an equal number of clockwise and counter - clockwise motors. To get the best performance and make them last longer, don't run them in reverse. Keep an eye on the operating voltage, which should be between 1.5 and 3.7V. After use, store the motors in a dry and cool place. If you notice any unusual noises or a drop in performance, it might be time to check the soldered connections or consider replacing the motors as they have a factory - rated lifetime of 5 - 6 hours.
