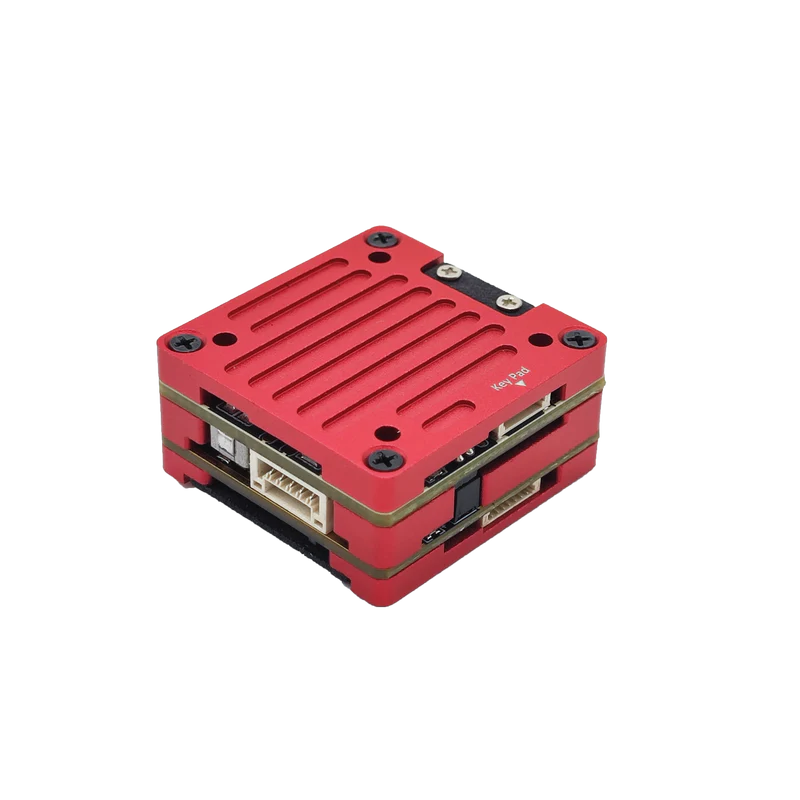

HDZero Freestyle V2 VTX

Are you in Australia and looking to purchase an HDZero Freestyle V2 VTX? This second - generation 5.8GHz digital video transmitter fits most 3.5 - inch and 5 - inch drones. Its CNC case not only protects all sockets but also offers durability, RF shielding, and better signal integrity. A wire harness is provided for solderless connections of power and MSP UART port. The antenna and MIPI cable are firmly secured by the included retention bar and screws. The VTX supports multiple video modes like 720p60, 1080p30, 540p60, and 540p90. It can reach a maximum 1W RF output at R1 channel with proper license or authority approval. Specifications include a weight of 22.3 g, dimensions of 29x30x14mm, an operating frequency of 5.725 - 5.850GHz, and more. The package includes the VTX, power cable, SA cable, plastic bars for Mipi and U.FL with screws, and double - sided tape. Browse related products like all VTX, NewBeeDrone items, and 20x20 transmitters.

Using the HDZero Freestyle V2 VTX is quite straightforward. First, connect the power cable and MSP UART port using the provided wire harness for a solderless setup. Then, secure the antenna and MIPI cable with the included plastic bars and screws. You can choose from different video modes according to your needs. When it comes to power, make sure the input power is between 7 - 25V. Keep in mind that the operating temperature should be between 32°F - 104°F (0°C - 40°C). For maintenance, try to keep it in a clean and dry place. If you need to unlock the 1W RF output at R1 channel, get the necessary license or approval from the authority. Also, don't forget to check the connections regularly to ensure stable performance.
