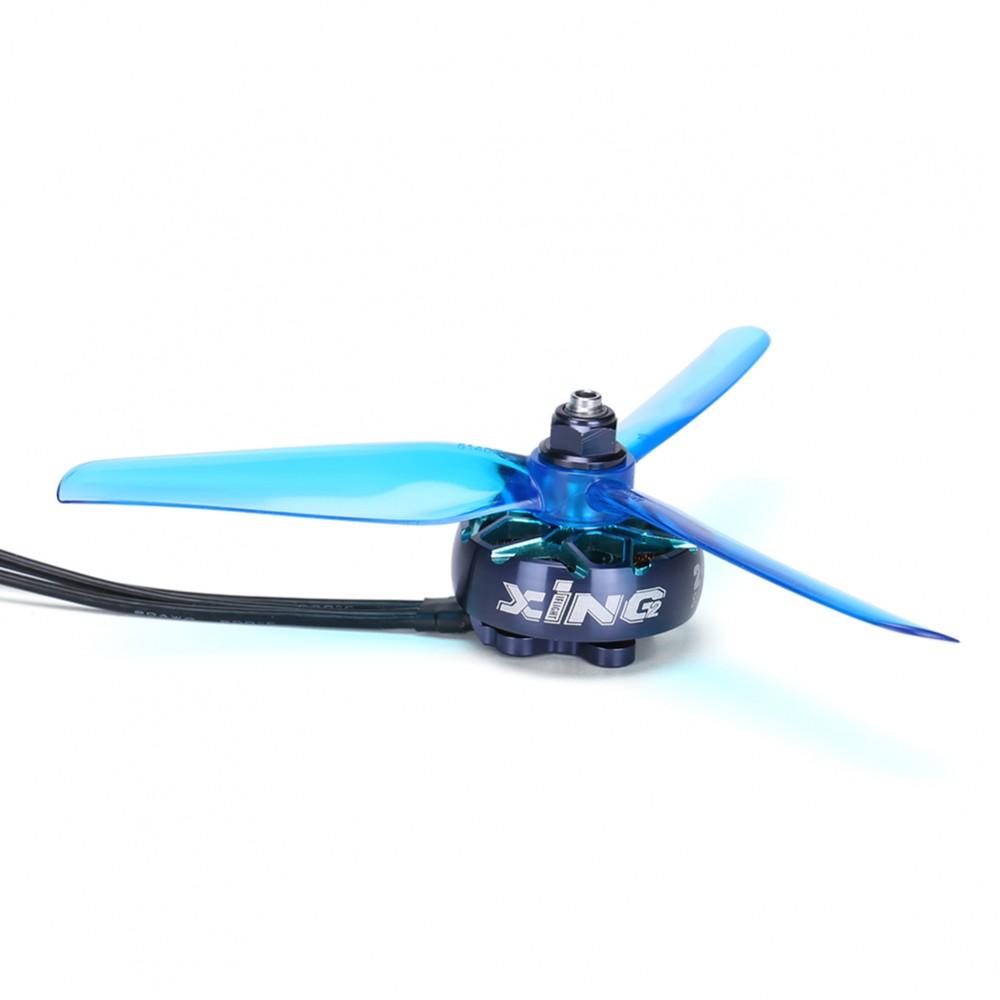

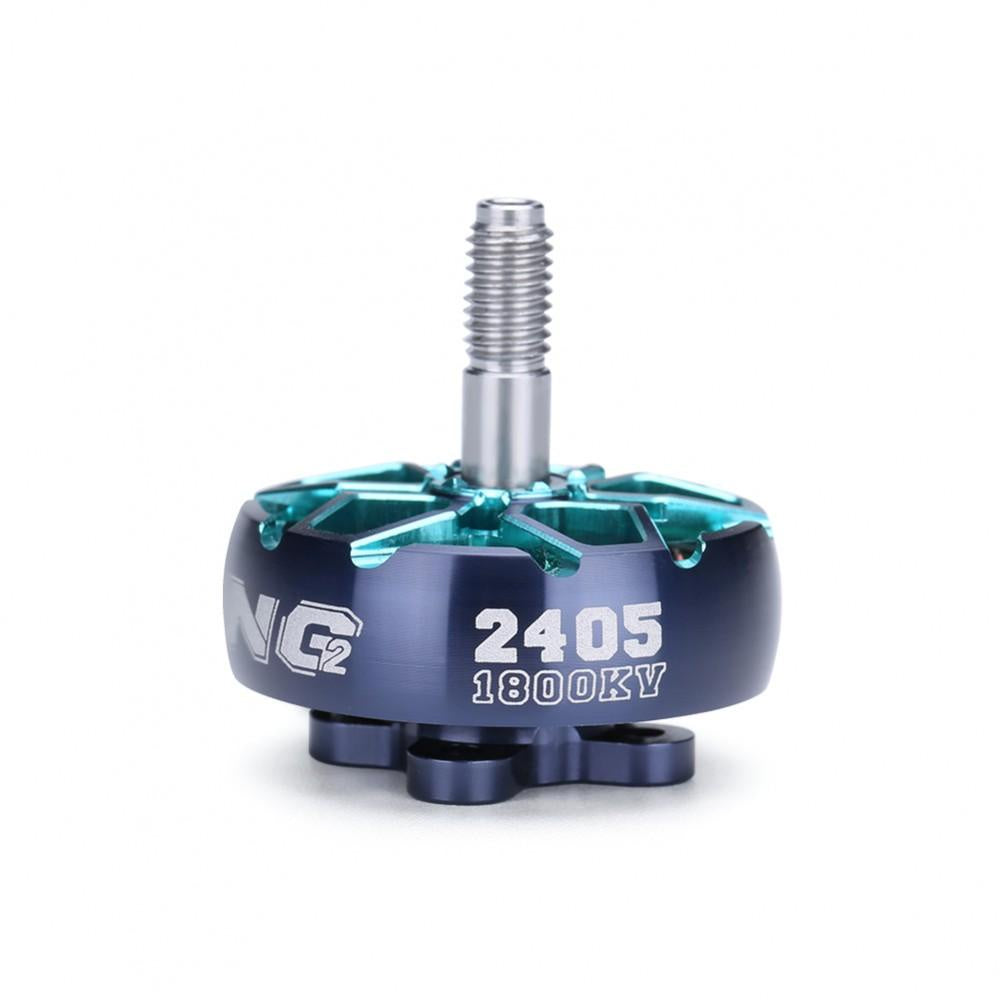

iFlight Xing 2 2405 FPV Motor 1800Kv/1950Kv

Are you in Australia and looking to buy top - notch Xing 2 2405 FPV motors? Our XING motors have been upgraded to reach a new manufacturing standard and offer better performance. Introducing the XING2! The Xing line, already known for high - quality manufacturing and excellent performance, has been further enhanced. New center - slotted N52H curved arc magnets, O - ring bearing protection, and adjusted tolerances reduce the magnet air gap and stator lamination, resulting in higher efficiency and more power! Features include a 5mm titanium alloy shaft, the strongest prop shaft we've ever made. The crash - resistant 7075 aluminum bell provides durability. Smooth and long - lasting NSK 9x9x4 bearings ensure a great user experience. Center - slotted N52H curved arc magnets, XING O - ring bearing gap protection, a motor wires protector, and dynamic balancing all contribute to the motor's outstanding performance. Specifications: Model is XING2 2405 with KV options of 1800KV or 1950KV. A common setup is 1800KV/1950KV with a 6S battery and 5 - inch propeller. The prop shaft has a CW thread, and the recommended input voltage is 4S - 6S (16V - 26V). It has a 12N14P configuration, a stator diameter of 24mm, and a stator height of 5mm. It weighs 30.7g with short wires, and the wire length is 20AWG 160mm. The mounting pattern is 16*16mm. The package includes 1 x iFlight Xing2 2405 1800KV Motor. You can also browse all 24xx Motors, all iFlight Motors, or all Motors.

Using your iFlight Xing 2 2405 FPV motor is straightforward. First, choose the appropriate KV value (1800KV or 1950KV) according to your setup, like a 6S battery and 5 - inch propeller. Make sure to connect the motor to the correct power source within the recommended voltage range of 4S - 6S (16V - 26V). When installing, align the motor with the 16*16mm mounting pattern. For safety, handle the 5mm titanium alloy shaft carefully as it's strong but can still be damaged if mishandled. The crash - resistant 7075 aluminum bell offers protection, but try to avoid crashes if possible. To maintain your motor, regularly check the NSK 9x9x4 bearings for smoothness. If you notice any rough movement, it might be time to replace them. Keep the motor clean and dry, and avoid exposing it to extreme temperatures. Also, check the motor wires protector and the XING O - ring bearing gap protection to ensure they are in good condition.
