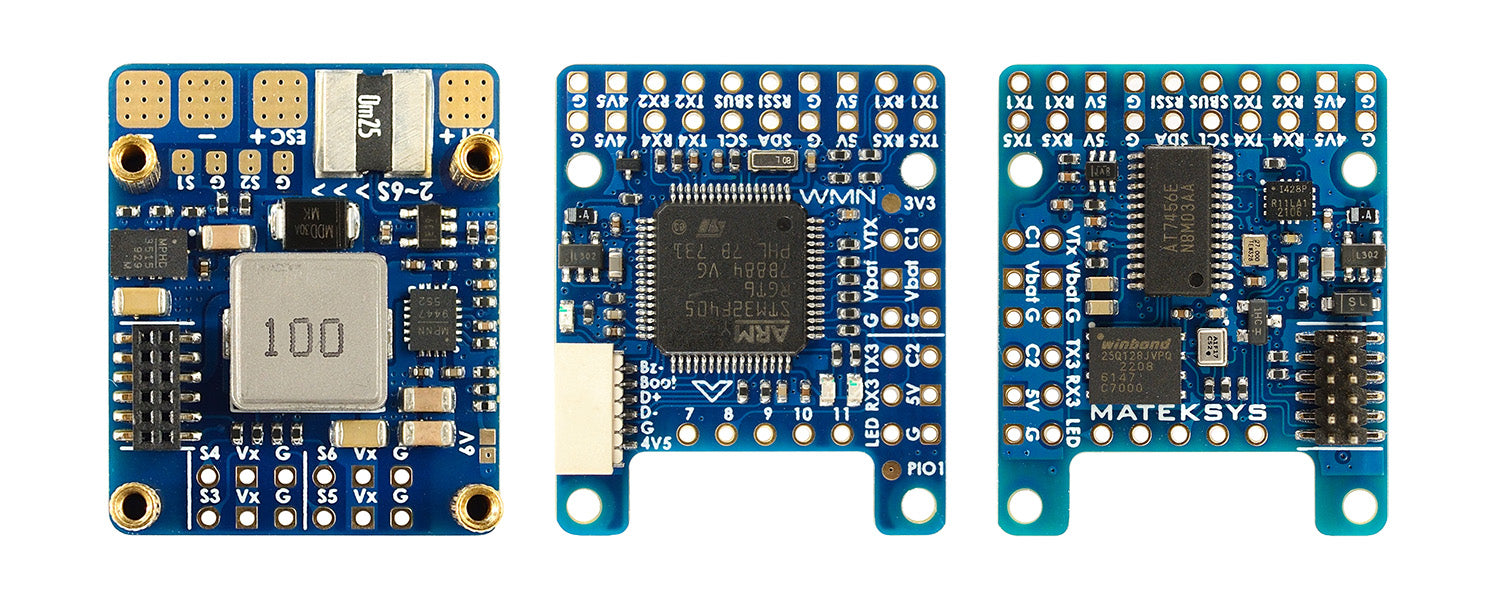

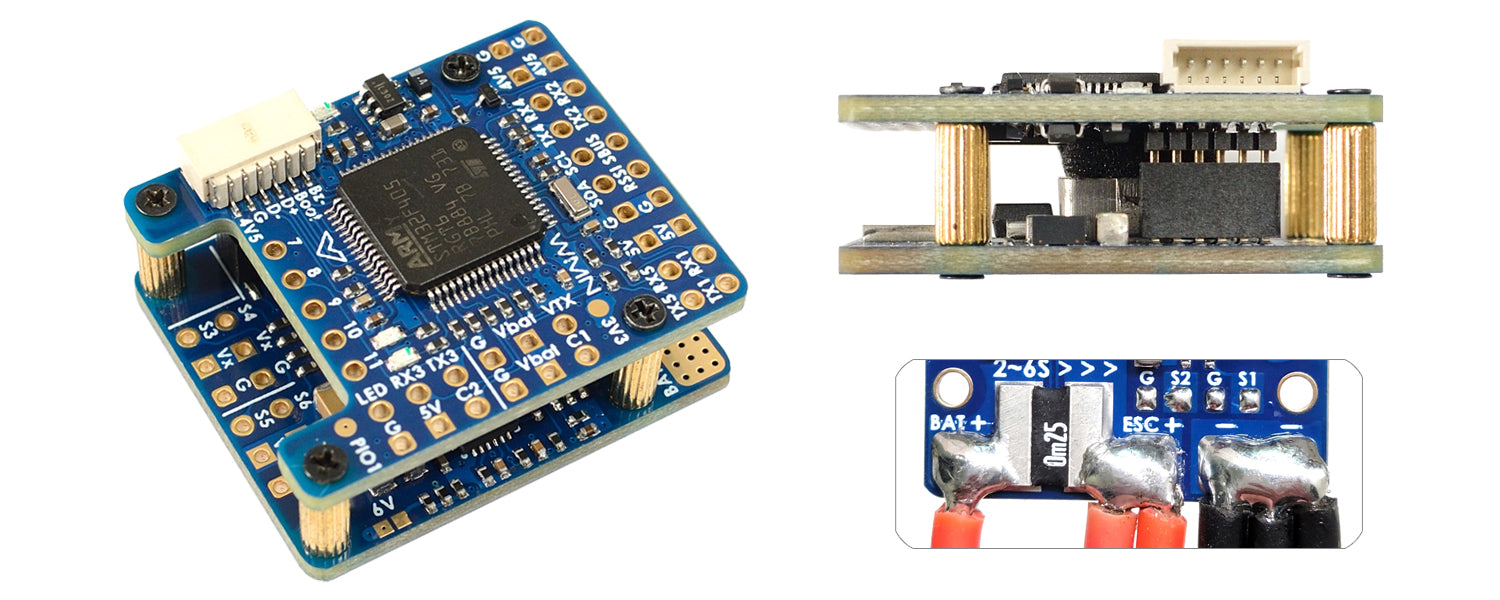

Matek F405-WMN ICM42688-P F4 Flight Controller

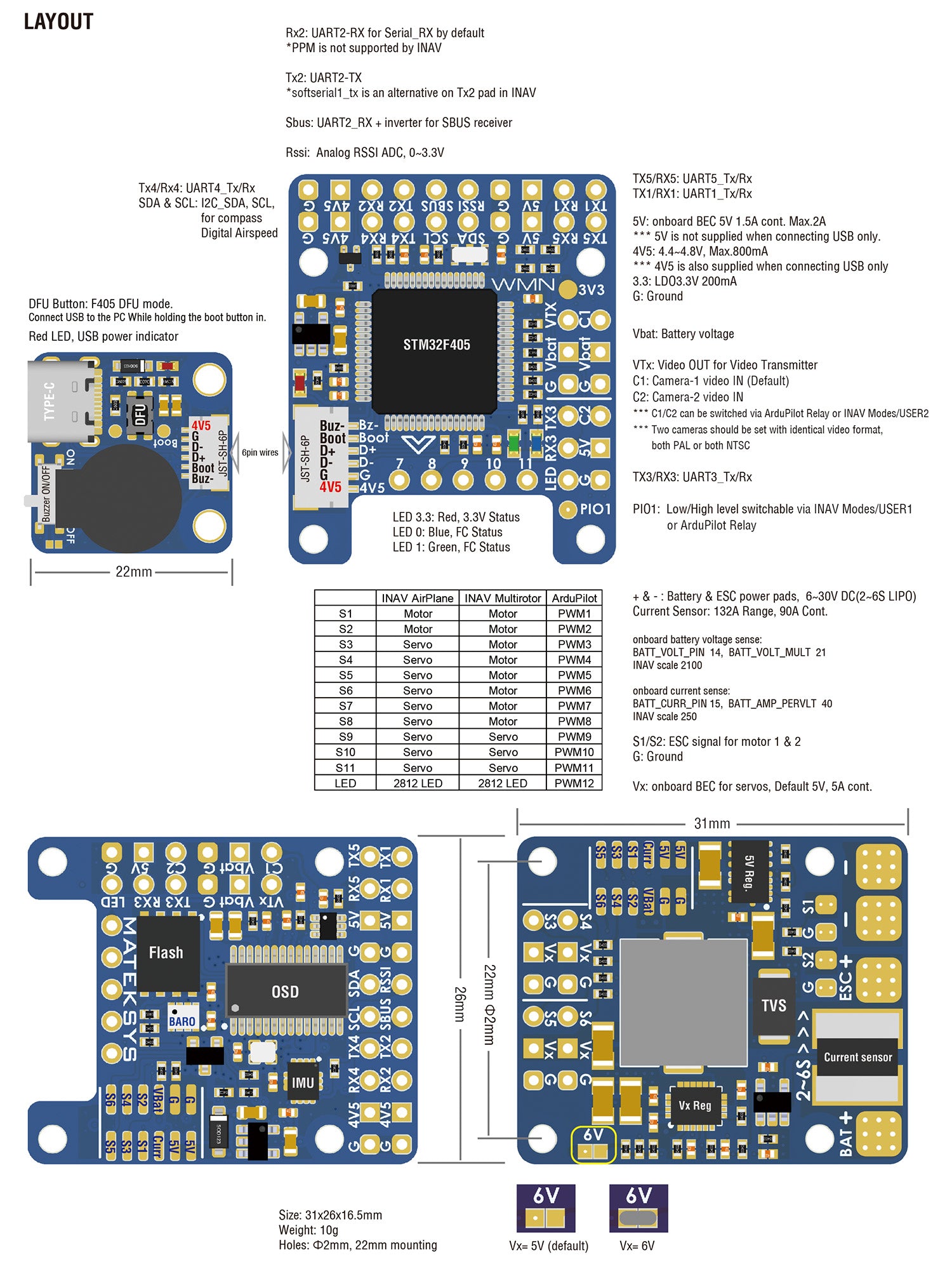

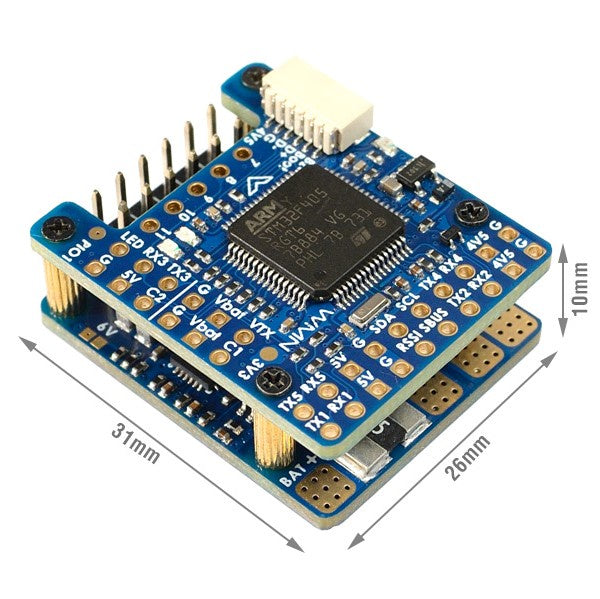

Are you in Australia and looking to buy a top - notch Matek F405 - WMN Flight Controller? This flight controller comes with a range of excellent features. The MCU is STM32F405RGT6 running at 168MHz with 1MB Flash, paired with ICM42688 - P IMU. It has a SPL06 - 001 barometer, AT7456E OSD, and 16M Flash for blackbox. With 5x UARTs, 1x Softserial_Tx option (INAV), 12x PWM outputs, 1x I2C, and 3x ADC for VBAT, current, and RSSI. There's also 1x spare PINIO. It has a USB/Beep Extender with Type - C (USB2.0) and a built - in inverter on UART2 - RX for SBUS input. The switchable dual camera inputs add more flexibility. In terms of power, it supports 6 - 30V DC IN (2 - 6S LiPo), has a 132A current sense, and the PDB/current sense resistor can handle 90A continuous and 132A burst. It provides BEC 5V 1.5A for FC & peripherals, BEC Vx 5A for servos with 5V/6V option, Vbat for VTX and camera, and an LDO 3.3V 200mA. The battery voltage sensor is 1k:20k. For firmware, it supports ArduPilot (MatekF405 - TE) and INAV (MATEKF405TE, INAV 5.0 or newer). Physically, it's compact with dimensions of 31 x 26 x 16.5 mm, a 22 x 22mm, Φ2mm mounting, and weighs only 10g. The package includes 1x F405 - WMN, 1x USB(Type - C)/Beep (Passive buzzer) Extender + 20cm JST - SH - 6P to JST - SH - 6P cable for USB extender, and Dupont 2.54 pins (board shipped unsoldered). You can also browse other Matek, Wing, and F4 Flight Controllers.

Using the Matek F405 - WMN Flight Controller is quite straightforward. First, connect the power source within the 6 - 30V DC IN (2 - 6S LiPo) range. Make sure to double - check the voltage to avoid damaging the controller. When it comes to wiring, connect your devices to the appropriate UARTs, PWM outputs, and other ports as per your setup. For firmware, you can choose between ArduPilot (MatekF405 - TE) and INAV (MATEKF405TE, INAV 5.0 or newer). Just follow the official installation guides for each firmware. When using the switchable dual camera inputs, select the camera you want to use according to your needs. As for maintenance, keep the controller clean and dry. Avoid exposing it to extreme temperatures or humidity. Check the connections regularly to ensure they are secure. If you notice any issues with the current sense or other functions, refer to the specifications and troubleshoot accordingly. Remember, the board is shipped unsoldered, so you'll need to solder the Dupont 2.54 pins if required.
