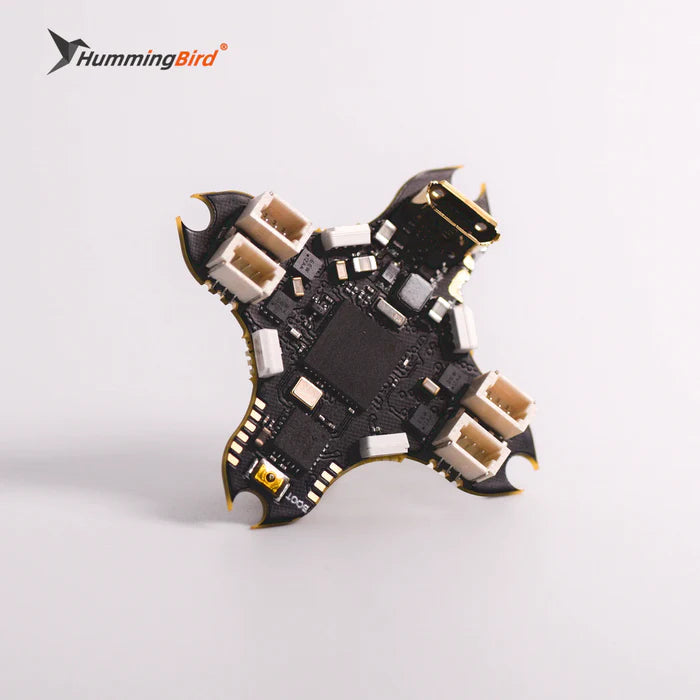

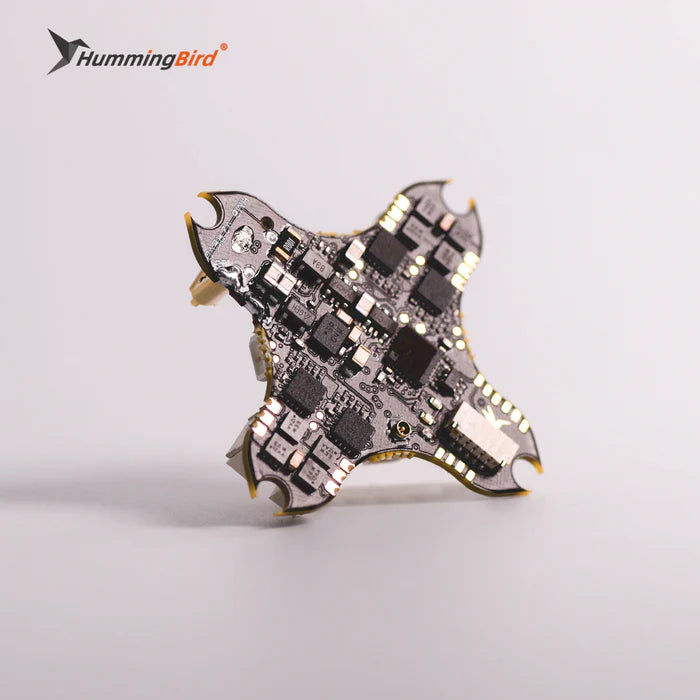

NewBeeDrone HummingBird F4 V2 Flight Controller

Are you in Australia looking to purchase a high - performance flight controller? The NewBeeDrone HummingBird F4 V2 Flight Controller is your ideal choice. It features an STM - F411 MCU pre - loaded with Betaflight, providing a solid foundation for flight control. This controller only supports 1S batteries and comes with an onboard current sensor for accurate power monitoring. Each motor channel has an ESC - 12A with a BB21 MCU, and it supports BlHeliS DShot (150, 300, 600) and Multishot. The gyro is a BMI270 for precise orientation sensing. There's an onboard sideways RGB LED controlled by Betaflight, adding a cool visual element. It's compatible with the BeeSign signal, which is great for communication with the NBD VTX - Camera System. The onboard Diversity SPI SX1280 Receiver (EXPRESSLRS) ensures reliable signal reception. With a JST1.0 MotorPlug and NBD OSD (compatible with Betaflight OSD), it offers great connectivity. It also provides 5V 2A power for external VTX cameras or receivers. Weighing just 4.27g with the power cable and PH2.0 Plug, it's lightweight and efficient. BeeSign, a protocol by the NewBeeDrone engineering team, enables seamless communication between the flight controller and the onboard VTX OSD of NewBeeDrone Mark1, 2, 3 Series Video Transmitters. Browse more F4 Flight Controllers, all Flight Controllers, and other Newbeedrone products.

Using the NewBeeDrone HummingBird F4 V2 Flight Controller is quite straightforward. First, make sure you're using a 1S battery as it only supports this type. Connect your motors to the JST1.0 MotorPlug and any external VTX cameras or receivers using the 5V 2A power supply. When it comes to setting up, the pre - loaded Betaflight will help you configure the controller according to your needs. You can also control the onboard RGB LED through Betaflight for some cool lighting effects. Remember, since it has an onboard current sensor, you can monitor the power consumption during flight. As for the BeeSign protocol, it will work automatically if you're using a compatible NewBeeDrone VTX OSD. For maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or moisture. If you need to update the firmware, follow the instructions provided by NewBeeDrone. And always double - check your connections before each flight to ensure a safe and smooth experience.
