TBS Unify Pro32 Nano 5G8 V1.1

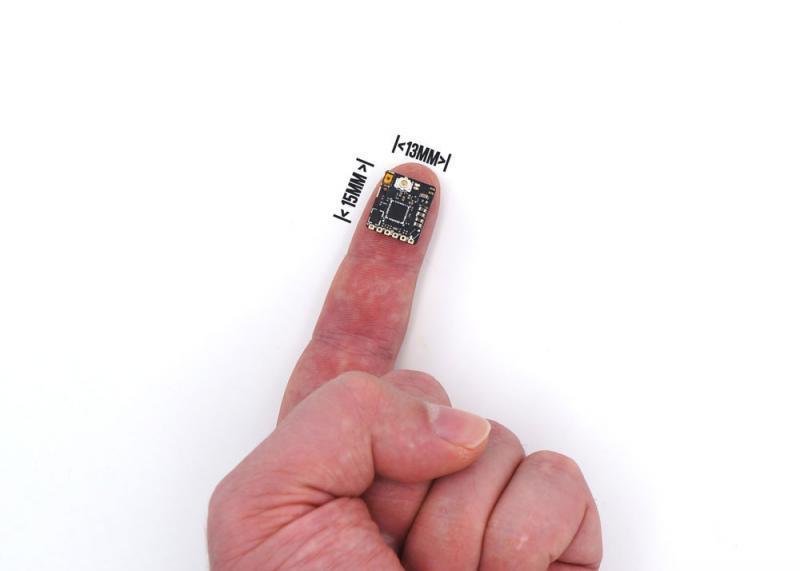

The TBS UNIFY PRO32 Nano is a game - changer in the world of video transmitters. It has increased output power, improved durability, and reduced power consumption. This nano VTx comes with amazing features and a perfect installation design for your multirotor. It's the most comprehensive, future - proof, high - quality video transmitter on the market. **Features** - It's the smallest and lightest video transmitter available. - Can read barcodes, making channel setting a breeze. - Output power up to 500mw+. - Offers ultra - clean transmission, supporting up to 16 pilots simultaneously. - PitMode allows you to power up your quad during a race with team - race capability. - Easy to change OSD, FC, and RC channels with a fallback button menu. - The robust RF amplifier lets you power it up without an antenna for hours. - Clean power - up and video switching. - CE certified. **Barcodes (Patent Pending)** The VTx can process camera images and read barcodes. This means you can set channels in the pits without transmission. Just point it at a barcode, and it'll switch to the desired channel or power level. More exciting features are on the way! **Pitmode - Ideal for Racing** With PitMode, you can power up your quad with zero interference. It reduces output power to a minimum, so you can test your system before a race. You can also power up the VTx using your remote with SmartAudio or CRSF. **Smartaudio V2.1 & CRSF - Ready for Team Races** SmartAudio technology gives you UART control over the video transmitter. You can freely control parameters like output power, bands, channels, and frequency from a smart device, radio, or OSD. With CleanSwitch, you can switch channels without disturbing other pilots. **CleanSwitch - Neighbor - Friendly** TBS CleanSwitch ensures interference - free power - up and channel changes. Unlike other transmitters, it won't cause flickering or interference to other pilots in the air. **Specifications** - Operating Voltage: 3 - 13V - Operating Temperature: Ensure normal airflow. - Video Input Impedance: 75 Ohm - Weight: 1g - Dimensions: 15 x 13 x 2mm - Antenna Connector: u.FL socket - Video Format: NTSC/PAL - Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 28dBm (500+mw) **Includes** - 1x TBS UNIFY PRO32 5G8 Video transmitter - 1x Silicone cable set (pre - tinned) - 1x Linear whip antenna - 1x Shrink Tube **Downloads** - TBS UNIFY Pro32 Manual - TBS UNIFY Pro32 Manual (German) - Declaration of Conformity - Note: A HAM license is required for operation on HAM channels and power levels. The VTx ships with only legal channels enabled. Check the manual for the unlocking procedure. **Browse More** - Browse all Video Transmitters - Browse all TBS Video Transmitters - Browse all Team Black Sheep

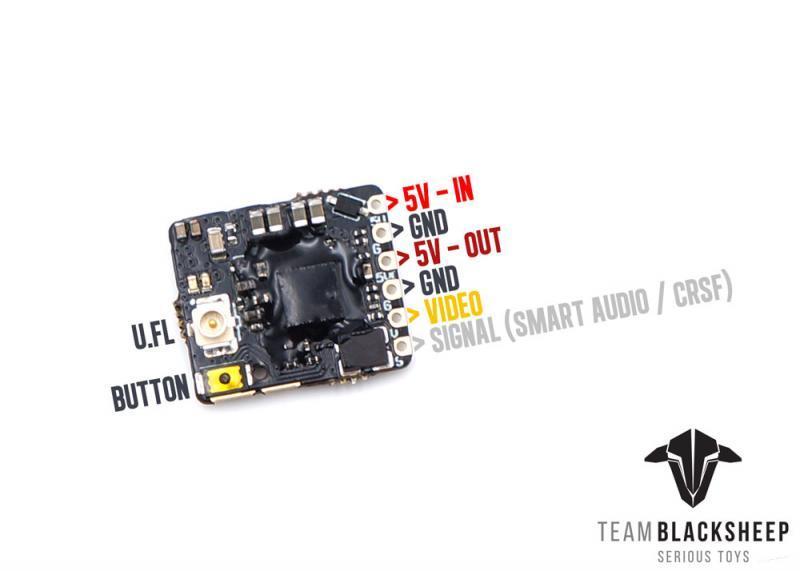

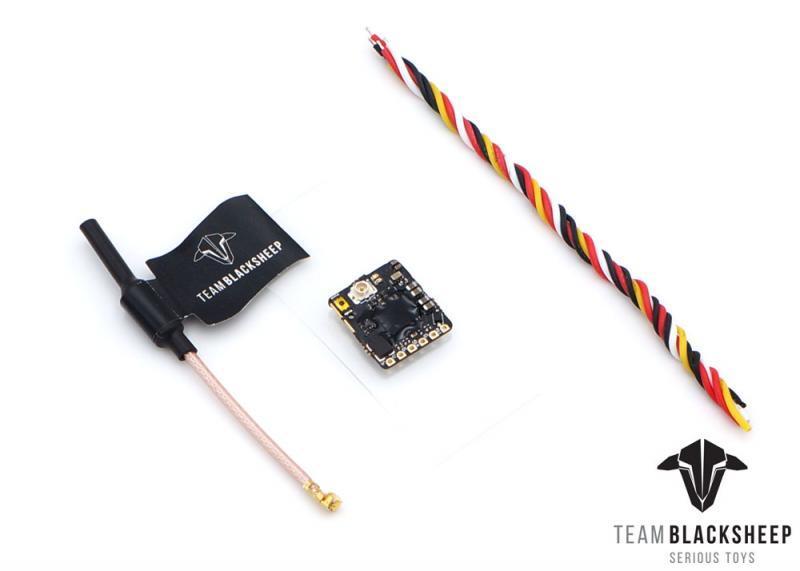

Using the TBS UNIFY PRO32 Nano is a straightforward process. First, connect it to your multirotor. Make sure to use the included silicone cable set and connect it properly to the right ports. Attach the linear whip antenna to the u.FL socket. When powering it on, ensure the operating voltage is between 3 - 13V. For setting channels, you have two great options. You can use the barcode - reading feature. Just point the VTx at the barcode of your desired channel or power level, and it will automatically adjust. Or, you can use SmartAudio V2.1 or CRSF to control it from your smart device, radio, or OSD. During a race, PitMode is very useful. You can power up your quad without causing interference to other pilots. Just set it to PitMode, and the output power will be reduced to a minimum. When it comes to maintenance, keep an eye on the operating temperature. Make sure there is normal airflow around the transmitter. If you're not using it, store it in a cool, dry place. And remember, if you want to operate on HAM channels and power levels, you need a HAM license. Check the manual for how to unlock these channels.
