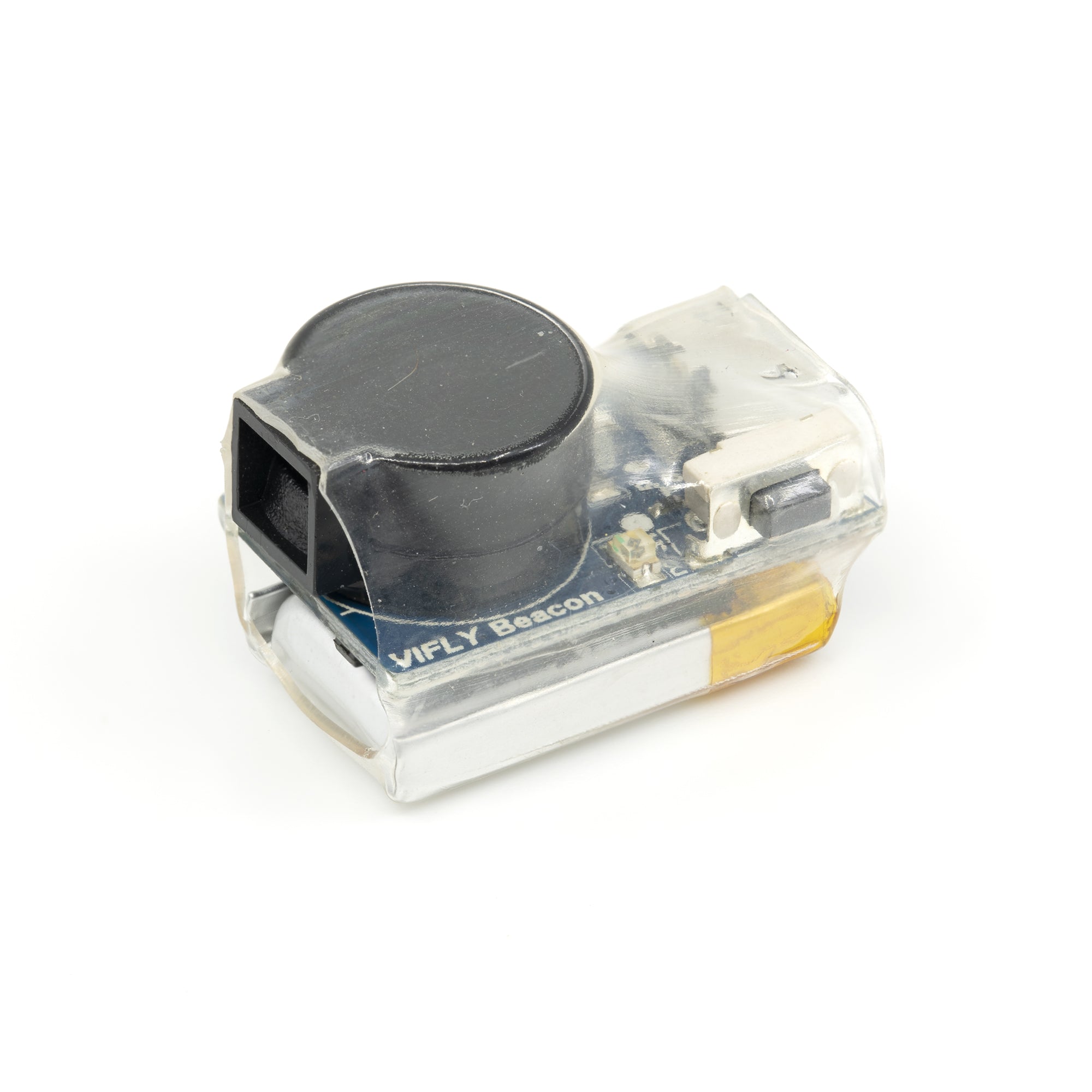

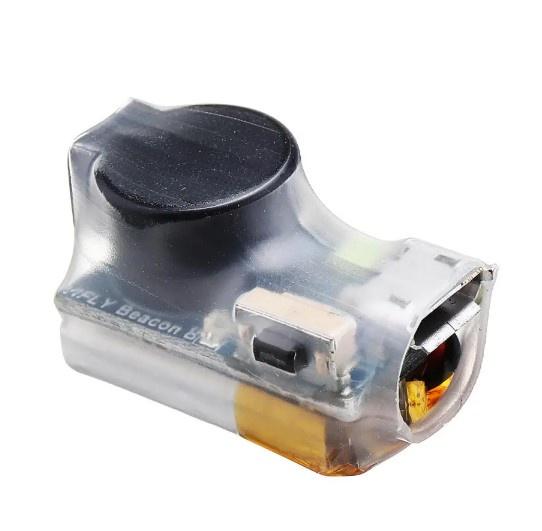

VIFLY Beacon Buzzer [DG]

Operation

• Activation: Hold the button for 2 - 5 seconds to power on or off. When turning on, the buzzer emits 2 short beeps and the LED lights up briefly. When turning off, it sounds 3 short beeps.
• Alarm: When a major crash is detected, the VIFLY Beacon enters pre - alarm mode, beeping once every 3 seconds. If another movement is detected within 30 seconds, the pre - alarm stops. Otherwise, it enters full alarm mode, beeping 2 loud sounds every 6 or 12 seconds. The LED flashes in low - light conditions.
• Stealing Alert: This function activates in alarm mode. If rapid movement is detected, it beeps continuously. Hold the button for 2 - 5 seconds to turn off the buzzer and end the warning.
• Motion Sensitivity Setting: Plug in the micro USB cable, hold the power button for 2 - 5 seconds until the LED blinks. Press the button within 10 seconds to enter the setting. One blink means high sensitivity, two blinks for medium, and three for low. Hold the button for 2 - 5 seconds to save.
• Charging: When the battery is low, the buzzer beeps 2 soft sounds per second. Charge via Micro USB cable, and the LED turns off when fully charged.

Alarm Activation Situations

• The quad crashes.
• The quad is static for over 5 minutes.
• The flight time exceeds 40 minutes.

Alarm Pattern

First 30 seconds	30s to 2 hours	After 2 hours
Low volume	Max volume every 6s	Every 12s / idle until dawn

Specifications

• Size (L x W x H): 25x14x15 mm
• Weight: 6 grams
• Volume: Up to 105 dB
• Working Time: Up to 30 hours
• Charge Time: 1.5 hours
• Battery: 80mAh LiPo
• Input Voltage: 4.5 - 5.5 V

Check out the full range of VIFLY Buzzers.

Using the VIFLY Beacon Buzzer is easy. To turn it on or off, just hold the button for 2 - 5 seconds. When you turn it on, it'll give you 2 short beeps and a quick LED flash. When turning it off, 3 short beeps. In case of a big crash, it starts a pre - alarm, beeping every 3 seconds. If there's no more movement in 30 seconds, it goes full alarm. There's also a stealing alert that activates in alarm mode and beeps non - stop if it senses fast movement. You can set the motion sensitivity by plugging in the micro USB cable and following the LED blink pattern. When the battery is low, it'll let you know with soft beeps. Charge it using the Micro USB cable, and the LED will go off when it's fully charged. The alarm activates when the quad crashes, is still for over 5 minutes, or the flight time is more than 40 minutes. Keep in mind the alarm volume and frequency change over time. As for maintenance, just make sure to charge it regularly and keep it in a dry place. With a light weight of 6 grams and a working time of up to 30 hours, it's a great addition to your quad setup.
