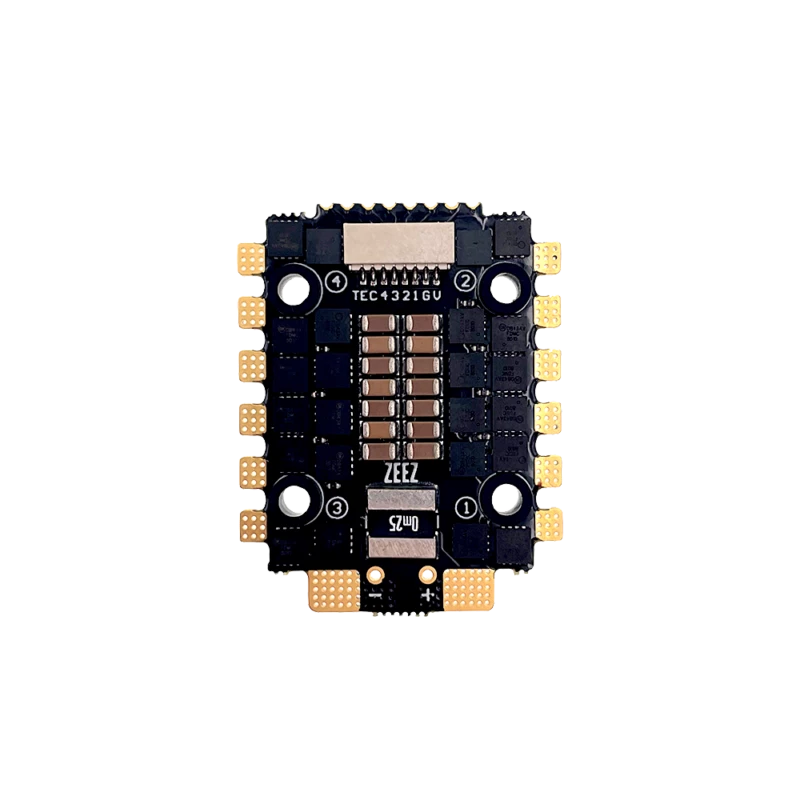

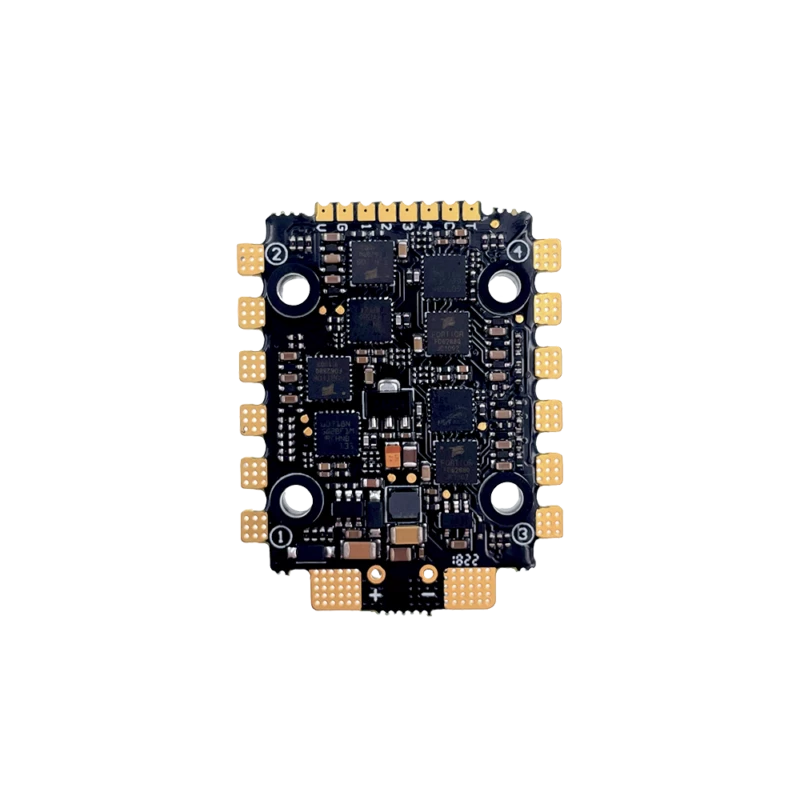

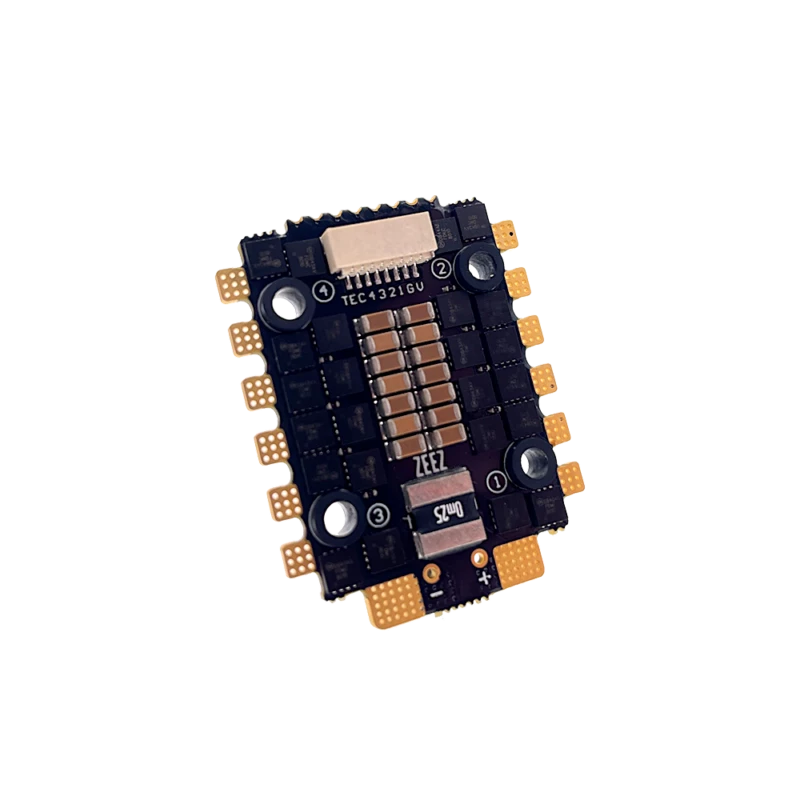

Zeez Design 20x20 45amp 4-in-1 BLHeli_32 ESC V3 2022

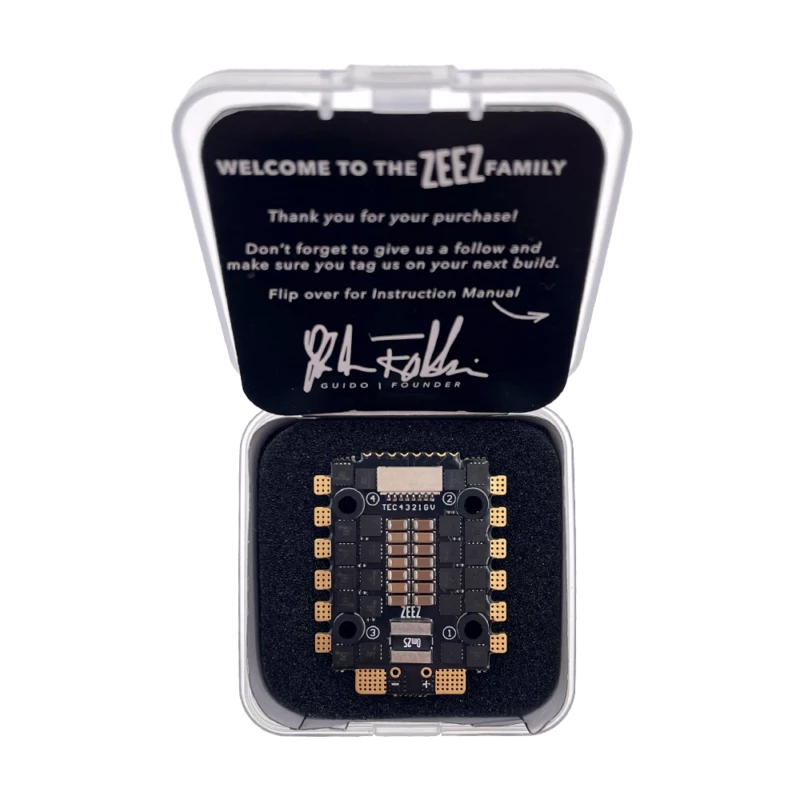

Are you in Australia and looking to buy a top - notch Zeez Design 45A 20x20 ESC? The ZEEZ 45A 4 - in - 1 ESC is an upgraded version of the 2020 model. We've incorporated user feedback and new tech to make it even better. It features the fastest MCU, the STM32G0, fully supported by BLHELI32. Out of the box, it supports bi - directional DSHOT and all digital protocols like DSHOT150, DSHOT300, DSHOT600. It also supports a 96KHz PWM drive frequency to the MOSFET and all analog protocols. We've listened to new pilots and improved the solder pads with more clearance. Key features include a 3S - 6S LiPo power input, 45A continuous current per channel, 55A burst current per channel, 14AWG - 130mm input wires, solder pads and 8P connector for output, high - quality 30V MOSFET with 1.3 mΩ RDS(on), 20x20mm mounting holes, and BLHeliSuite32 firmware. The package includes a ZEEZ 45A 4 - in - 1 ESC, 4 aluminum standoffs, an 8 - pin to servo connector JST SH, 2 470uF 35V low ESR capacitors, and an XT60 with 12AWG silicon cable for battery connection. Also, you can browse more 20x20 ESCs, all ESCs, FPV stack combos, and Zeez Design products.

Using this Zeez Design 45A 4 - in - 1 ESC is easy. First, connect the input wires to your battery using the provided XT60 connector. Make sure to match the red and black wires correctly. Then, connect the output to your motor through the solder pads or the 8P connector. Link the ESC to your flight controller using the 8 - pin to servo connector JST SH. When it comes to power, use a LiPo battery with a voltage between 3S and 6S. Be careful when soldering to avoid short - circuits. After use, store the ESC in a dry and cool place. If you notice any issues, check the firmware and make sure it's up - to - date using BLHeliSuite32. Regularly inspect the solder joints and wires for any signs of wear or damage.
