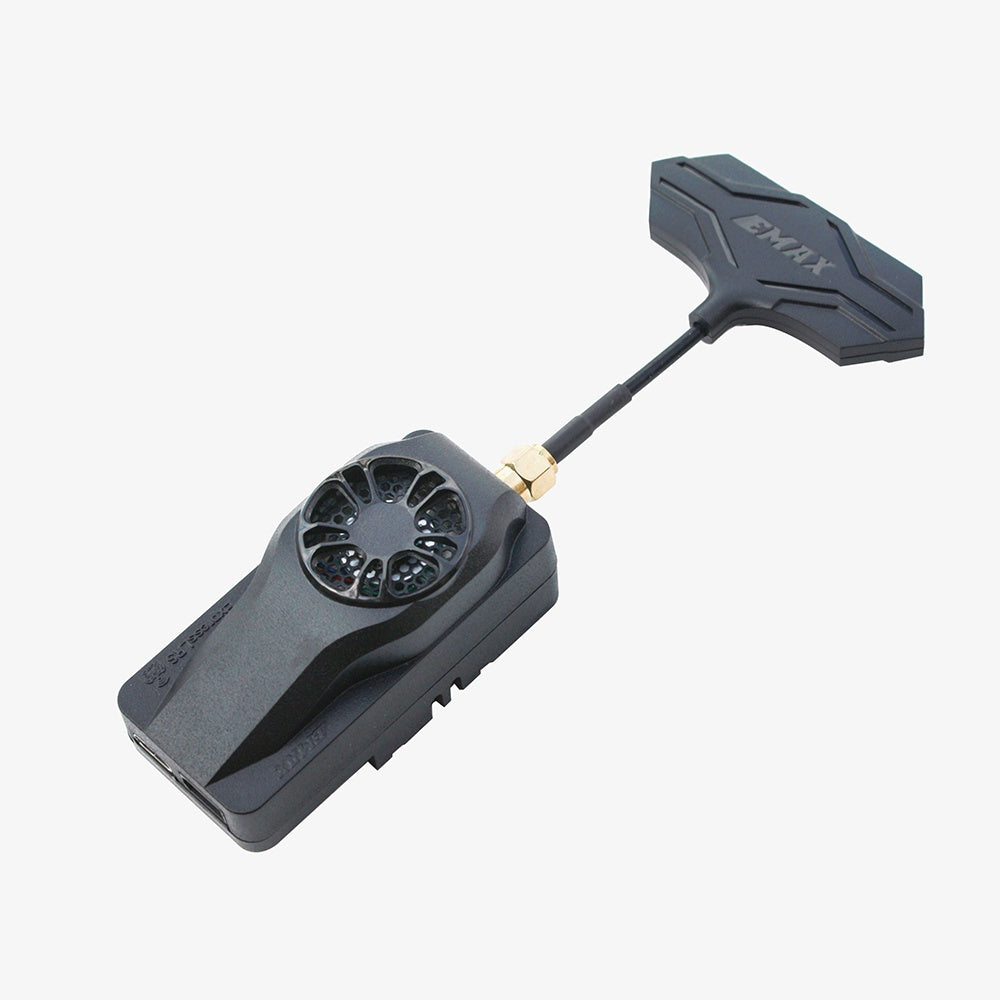

EMAX Aeris Link ExpressLRS 2.4ghz Nano Module

Are you in Australia and looking to purchase an amazing EMAX Aeris Link ExpressLRS Nano Module? Emax has made its mark in the Express LRS product world with the Aeris Link module. You can choose between 915MHz or 2.4GHz for excellent range and penetration. This module comes with high output power and external power options. Fly with confidence in the skies using ELRS with Emax! Features include 1000mW for 2.4GHZ ELRS, an RGB fan that shows battery level, an OLED screen and joystick or LUA script friendly design, and 2 - 5S operational voltages. Specifications are as follows: Module Bay Input Voltage is 5 - 12V, OLED Screen size is 1.29' (Full size only) with a resolution of 64 x 128 (Full size only), Operating frequency is 2.4GHz ISM / 915MHz FCC, Output power options are 10mW/25mW/50mW/100mW/250mW/500mW/1000mW, Refresh rate options are 50Hz/100Hz/150Hz/250Hz/500Hz, Antennas are Moxon Directional Antenna (2.4GHz) with RP - SMA connection, Configuration supports Crossfire Serial Data Protocol (CRSF) and OpenTX remote control signals, Interface includes Type - C and JR interface, and External Power supports XT30 with 5 - 21V (2 - 5S) voltage input (2S (8.4V) recommended). The package includes 1x Emax Aeris Link ELRS 2.4GHz NANO Module. Browse all ELRS products for more options.

Using this EMAX Aeris Link 2.4GHz ExpressLRS Nano Module is easy. First, make sure to connect it properly to your device using the Type - C or JR interface. If you're using external power, connect it with the XT30 connector and use the recommended 2S (8.4V) voltage. When flying, you can choose the appropriate output power and refresh rate according to your needs. The RGB fan will show you the battery level, so you can keep an eye on it. For the OLED screen, it's user - friendly and works well with joystick or LUA script. As for maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures and moisture. If there are any issues, check the connections first. That's all you need to know to get the most out of this great module.
